Wholesale LX8025P China best high power metal sheet plate enclosed Exchange Table fiber laser cutting machine stainless steel crabon steel iron price Supplier and Manufacturer

SAFETY AND ENVIRONMENT PROTECTION

• Metal laser cutting machine adopts fully enclosed design;

• The laser protective glass of the observation window complies with the European CE standard;

• The fumes generated during cutting can be filtered inside the machine without contamination.

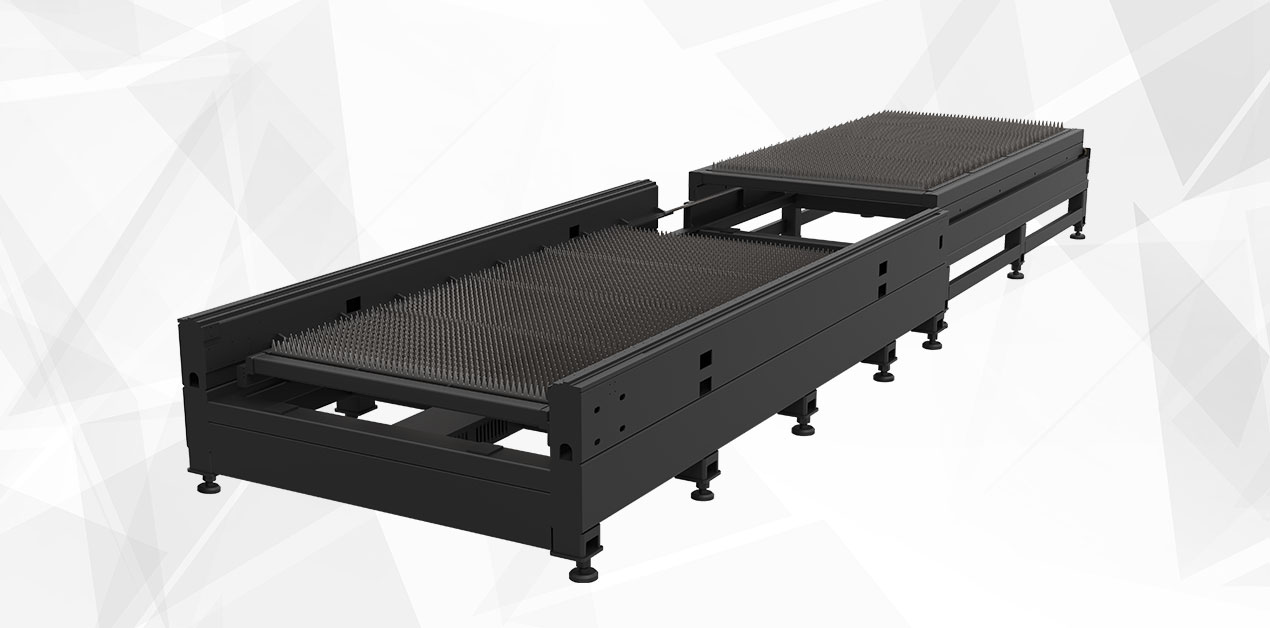

EXCHANGE TABLE

Adopt upper and lower exchange platform; The converter is responsible for controlling the AC motor; The fiber laser cutting machine can complete the exchange of the two platforms within 10-15s.

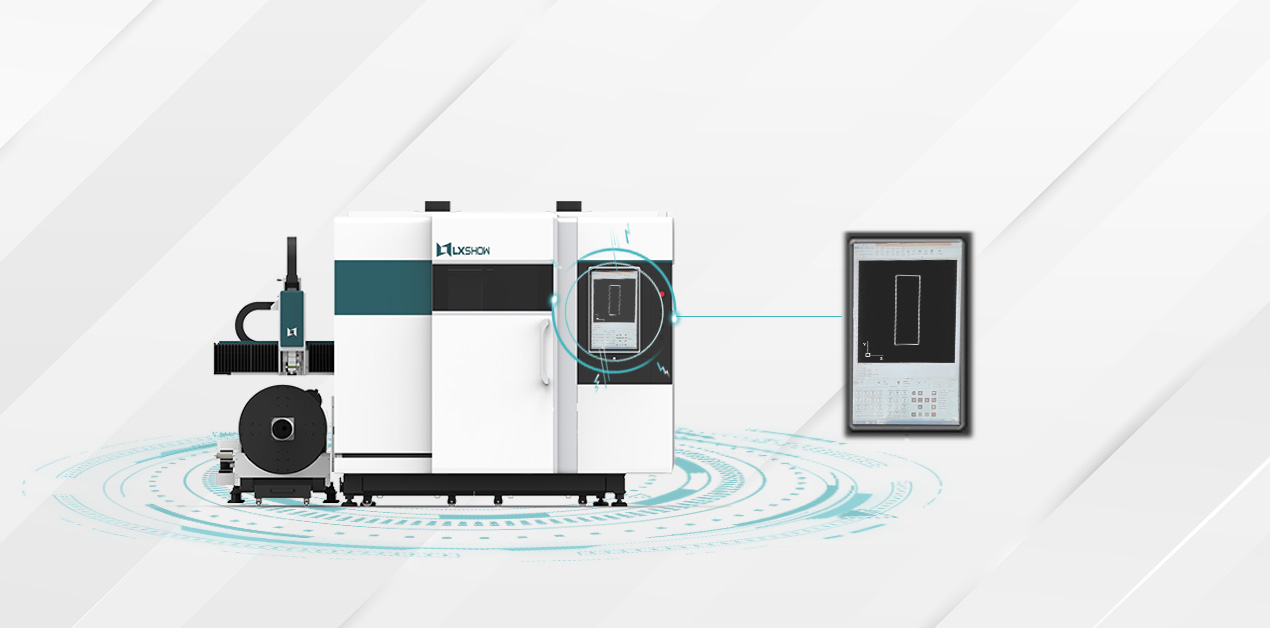

BOCHU SYSTEM

Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.

●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

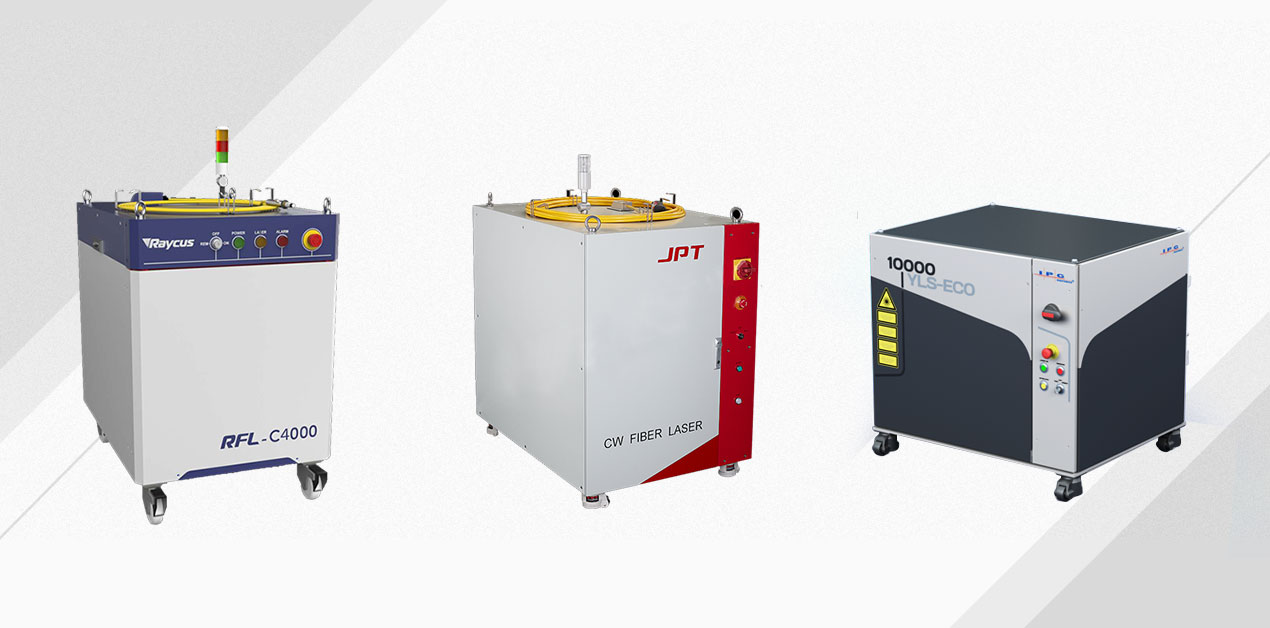

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

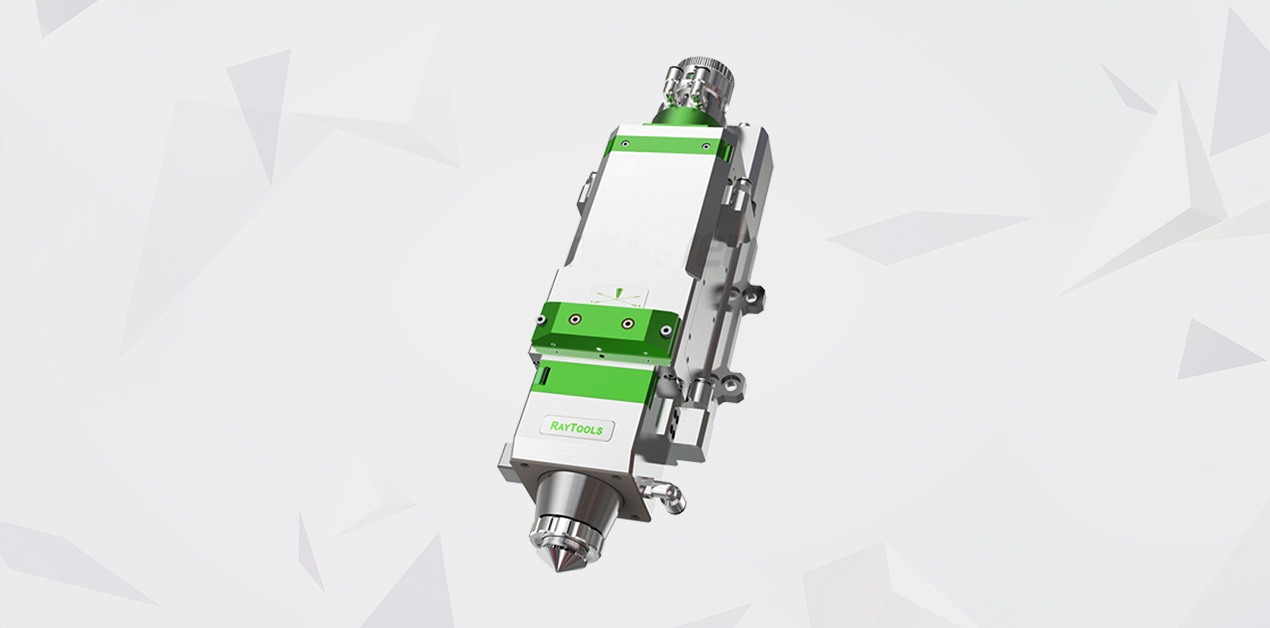

INTELLIGENT AUTOFOCUS

The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

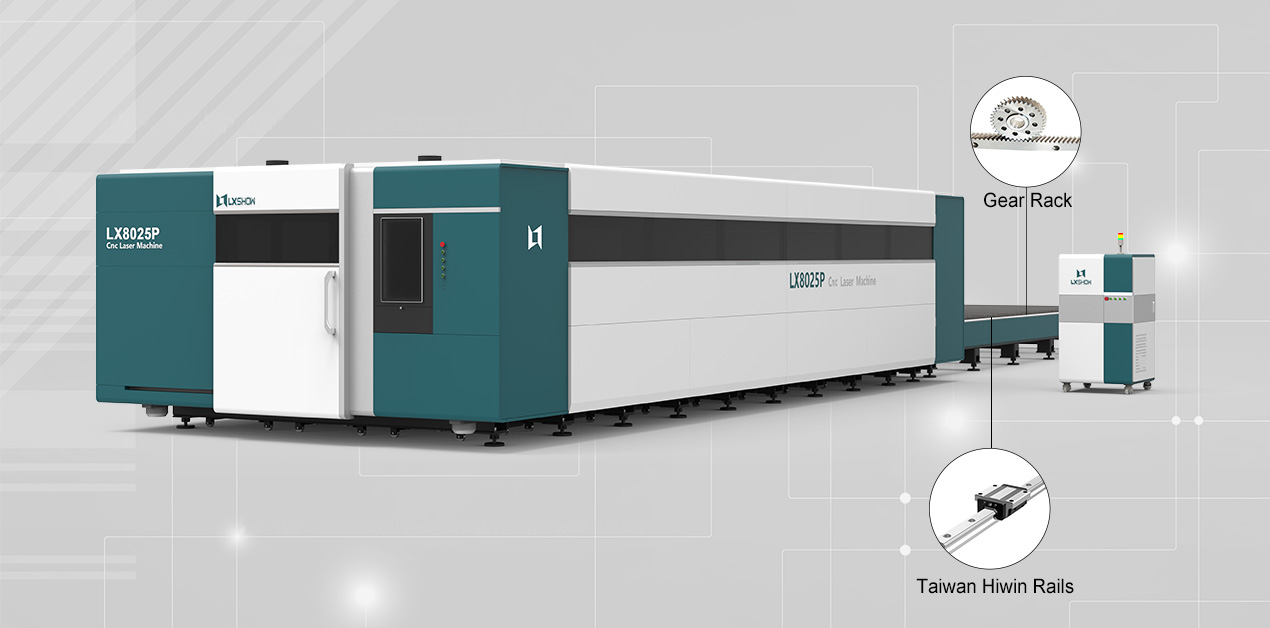

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutter is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G.

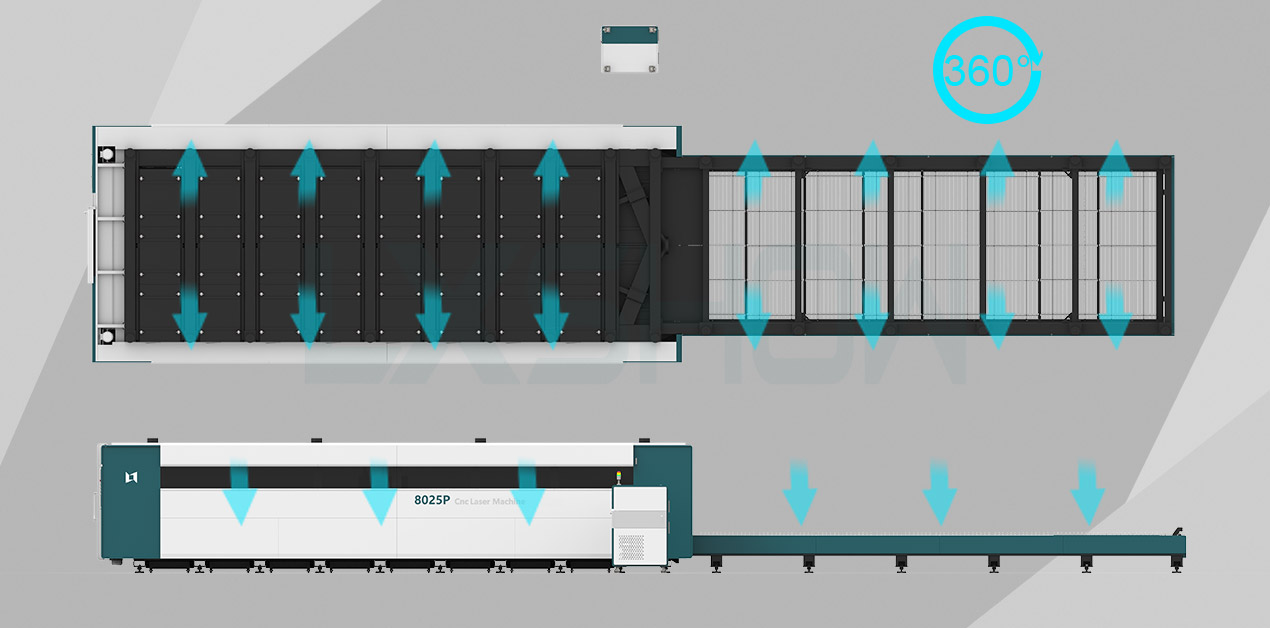

SEGMENTED FUME EXTRACTION SYSTEM

The whole machine is fully covered for smoking, super suction, State-of-the-art tobacco control technology, Each section of the bed has a smoke exhaust device

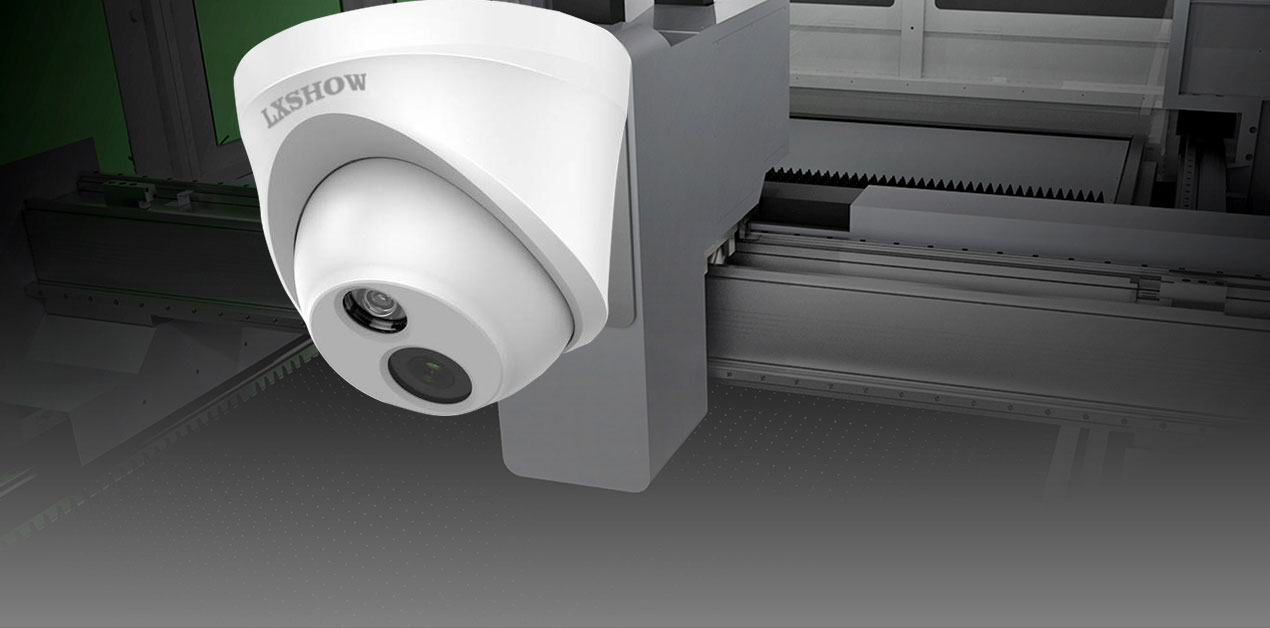

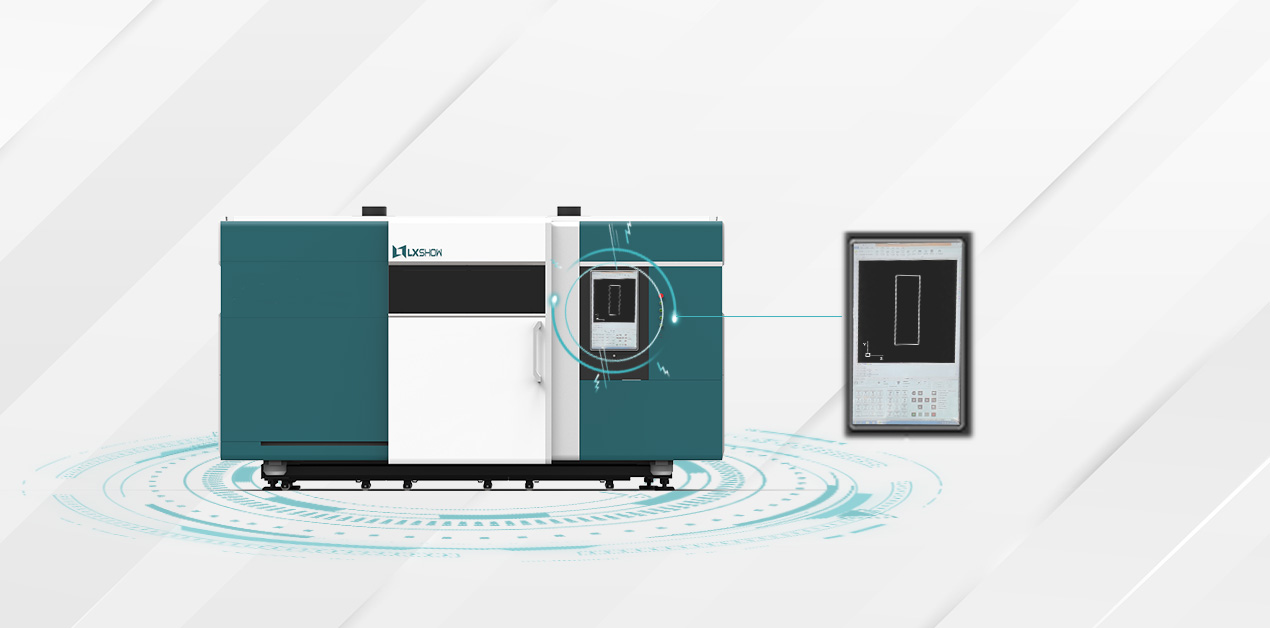

MONITORING SYSTEM

Real-time observe the machine running through the panel

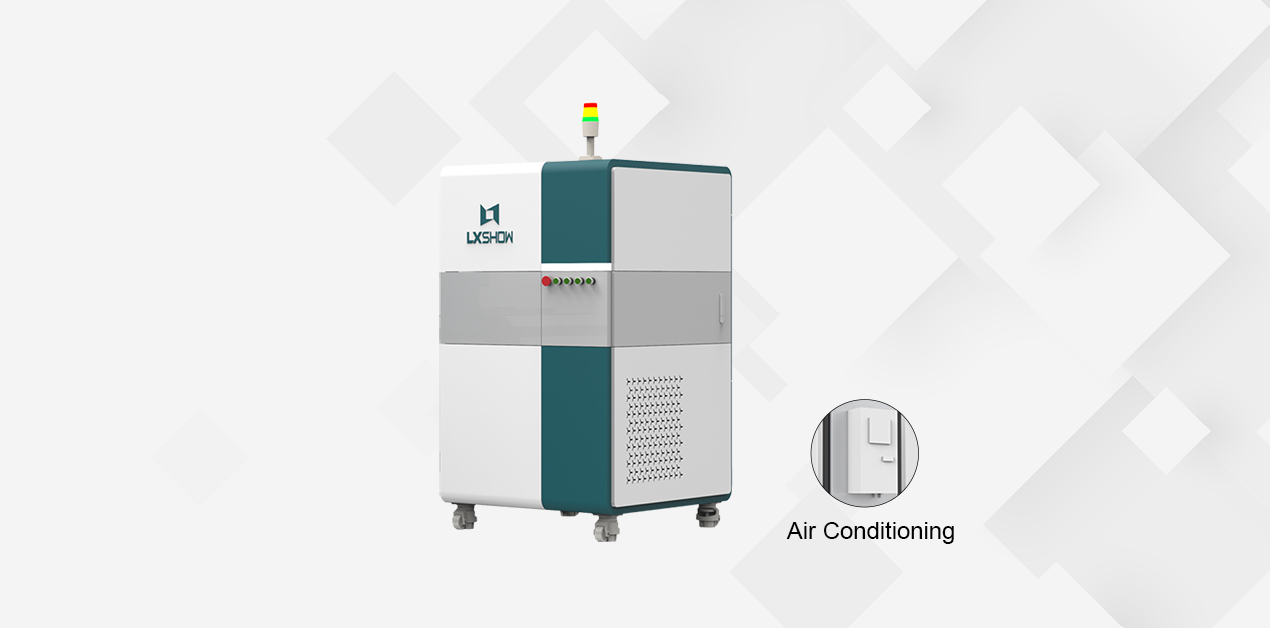

INDEPENDENT CONTROL CABINET

Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.

Model Number: LX8025P
Lead time: 20-40 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C

Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model	LX8025P
Power of Generator	3000-12000W
Dimension	1840039242255
Working Area	2500*8000mm
Repeated Positioning Accuracy	±0.02mm
Max Running Speed	160m/min
Max Acceleration	2G
Specified Voltage And Frequency	380V 50/60HZ

8025P 3kw 4kw 6kw 8kw fiber laser cutting machine Application

Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
