200W 300W 400W 500W YAG Laser Welding Machine for Die&Mould

Maximum Laser Output Power

200W

Wavelength

1064nm

Max Pulse

80J

Pulse Width

0.1-20ms

Frequency Range

0.1-100HZ

Beam-divergence Angle

＜＝5mard

Degree of Laser Power Instability

＜＝±2%

Beam Diameter

0.5-3mm

Control System

PLC

Welding Area

450*300mm

Continuous Working Time

16h ≥

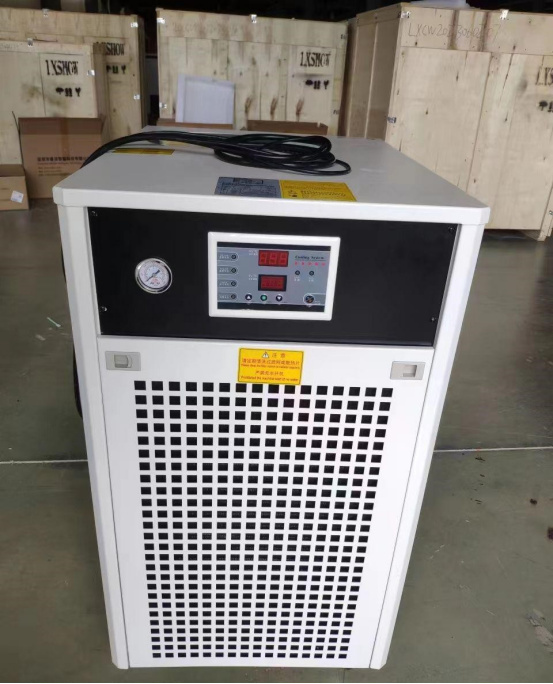

Cooling Sytem

Water cooling

Voltage

AC380V/50HZ/60HZ±10%

Packing size

3CBM

Machine weight

260KG

Packing weight

312KG
