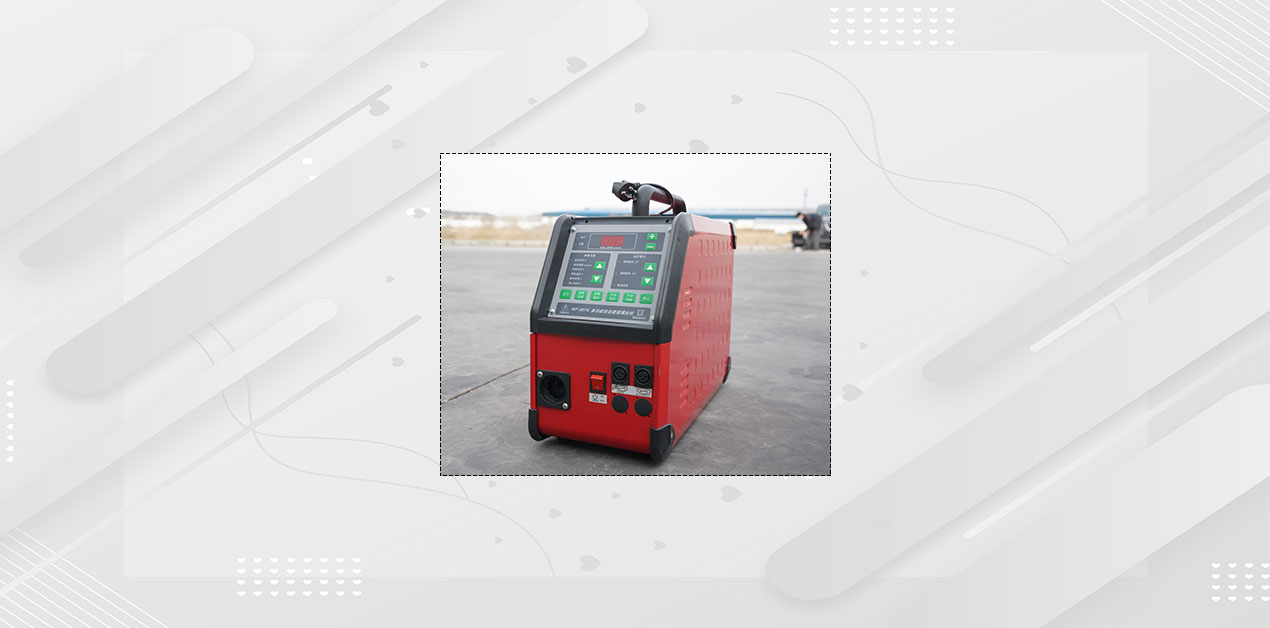

Automatic Wire Feader
The system adopts microcomputer control, step reduction motor drive, high wire feeding precision and good repeatability

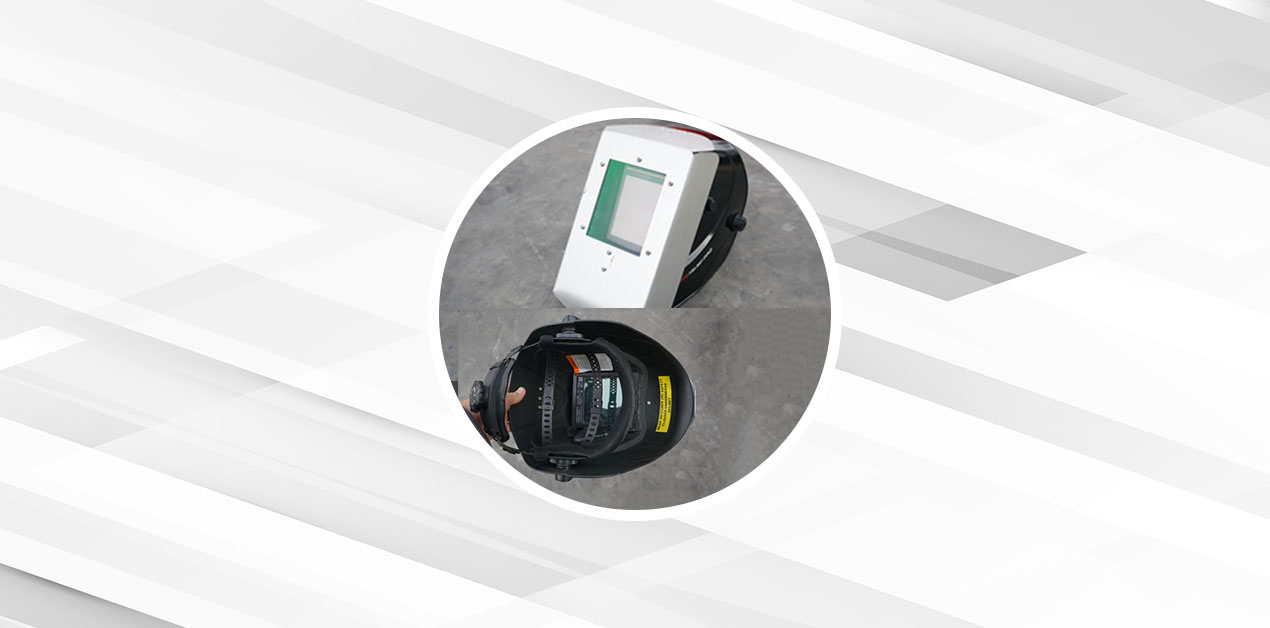

Face Mask
Better protect your operation safety and protect your eyes
Laser Power
Laser power up to 1500 W is easily adjusted with intuitive controls to quickly dial in optimum weld settings for various materials and thicknesses. With 74 stored preset and user defined process parameters, novice welders can be trained and welding in a matter of hours. Select stored modes provide up to 2500 W of high peak power for even greater welding capability.

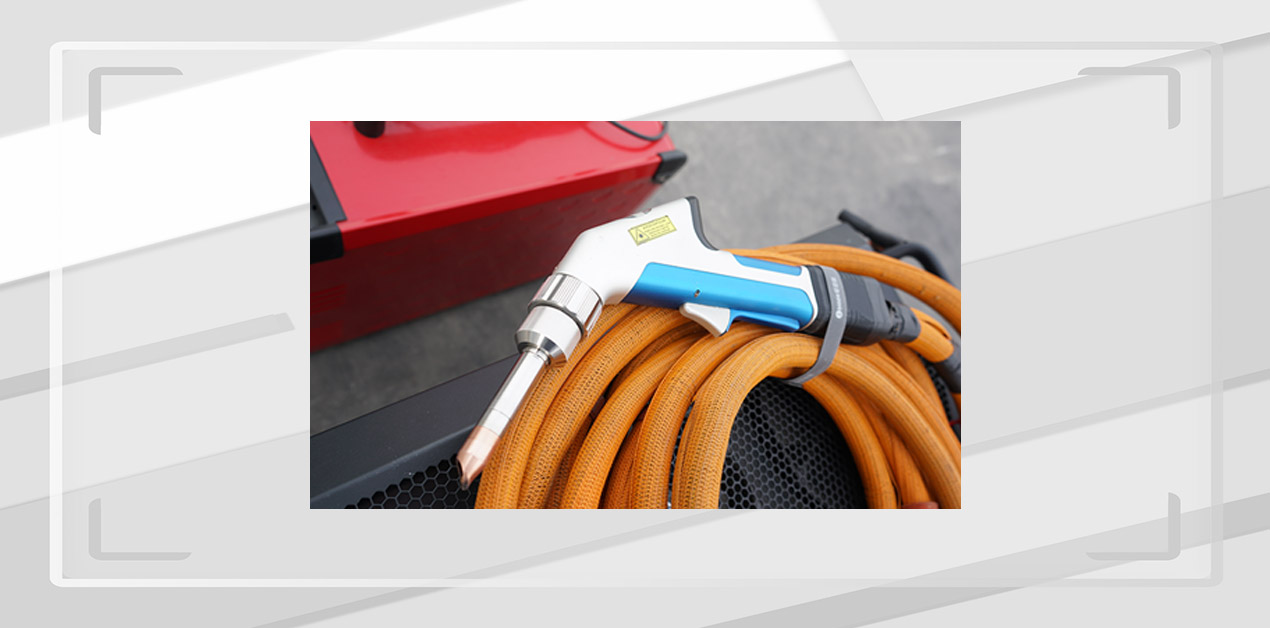

Handheld Welding Gun
The handheld welding gun is compact, ergonomic and proven to be the most comfortable, well balanced and easy to use gun available. The light weight and built-in wobble functionality enables operators to produce high-quality welds consistently throughout the day and safely with its 2-step trigger.
Model Number: LXW-1000/1500W
Lead time: 5-10 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 1150*760*1370mm
Machine weight: 275KG
Brand: LXSHOW
Warranty: 2 years
Shipping: By sea/By air/By Railway
| Model | LXW-1000/1500W |
| Laser power | 1000/1500W |
| Center wavelength | 1070+-5nm |
| Laser frequency | 50Hz-5KHz |
| Work patterns | Continuous |
| Electricity demand | AC220V |
| Output fiber length | 5/10/15m (Optional) |
| Cooling method | Water Cooling |
| Dimensions | 1150*760*1370mm |
| Weight | 275kg(About) |
| Cooling water temperature | 5-45℃ |
| Average consumed power | 2500/2800/3500/4000W |
| Laser Energy Stability | <2% |
| Air humidity | 10-90% |
Application
Laser welding machine is suitable for welding of stainless steel, iron, carbon steel, galvanized sheet, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
