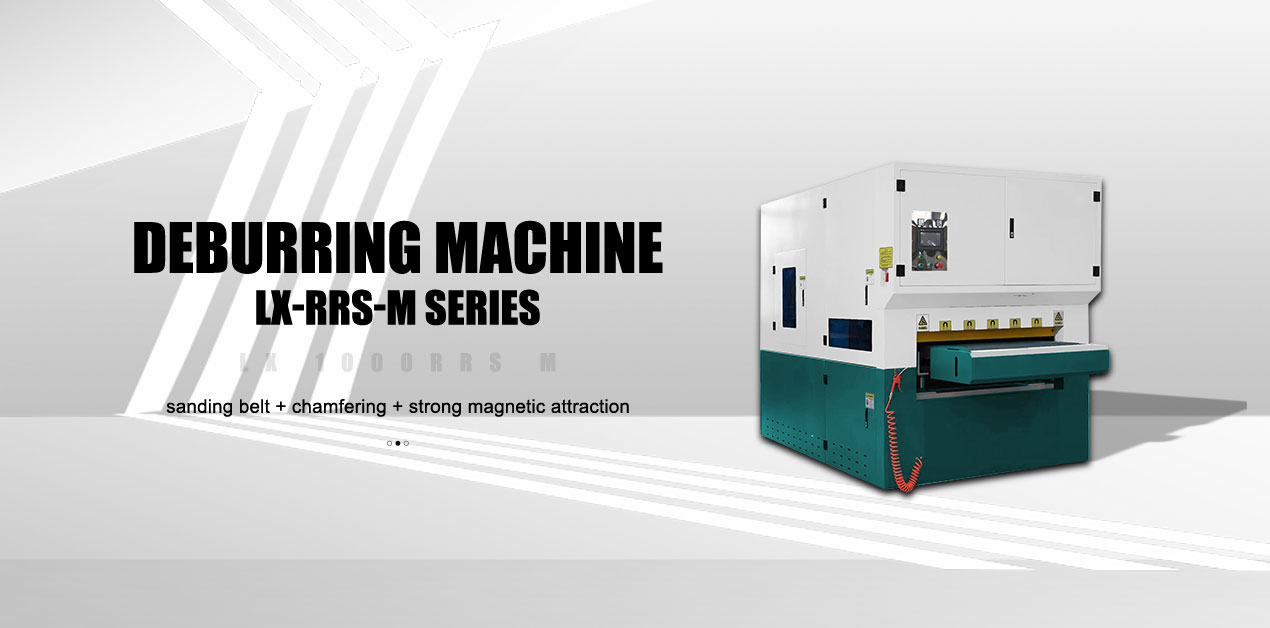

Double Abrasive Belt Deburring and Chamfering Machine for Plasma or Laser Cutting Punching Parts

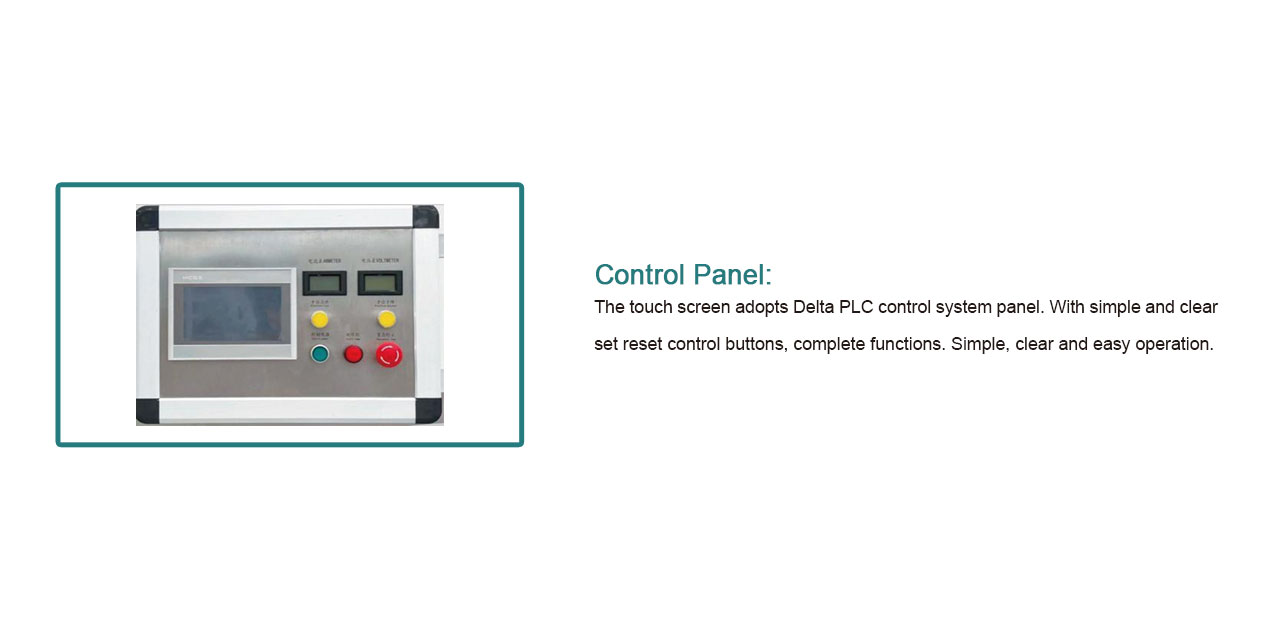

1. QMZN-RR-M model machine mechanism is developed and designed by our professional technical team, the whole machine according to the three-dimensional artificial science design is reasonable, long-time working operation to achieve equipment stability and accuracy. The sand frame is welded by high-strength automated machinery and quenched to improve the hardness, strength and wear resistance to meet the performance of the equipment;2. the touch screen display adopts Delta PLC control system panel, concise and clear self-resetting control buttons, intelligent temperature controller with high control accuracy; key display function is simple and clear, all in one, easy to operate;

3. the equipment model adopts huarui all-copper core motor, to provide strong power for the machine;

4. the electrical components of the equipment adopts Chint/Delisi electrical system, safety and durability, quality is guaranteed;

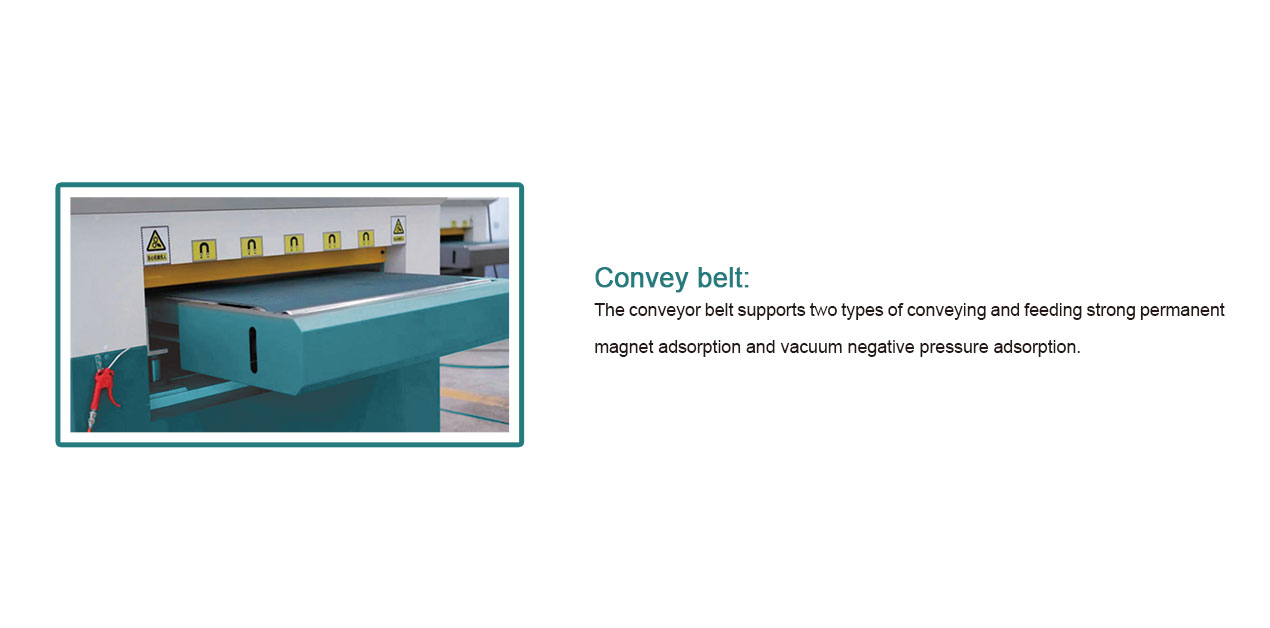

5. the conveyor stepless frequency conversion speed motor, according to the sanding demand to control the sanding speed, the conveyor platform is about 15% longer than other manufacturers, the platform import and export part of the platform is about 20% longer than other manufacturers, the continuous feeding through the type processing is more convenient for the workers to load and unload a large number of materials to meet the needs of the order volume of processing, improve production efficiency.

6. Our equipment is specially equipped with air guns for blowing away the iron powder and rust on the conveyor belt at any time, which can better increase the service life of the conveyor belt;

7. the equipment is equipped with a set of FDCR automatic photoelectric highly sensitive automatic deskewing system, without manual intervention, the sand belt can find the point of swinging action in a very short time, so that the sand belt basically does not swing, so that the parts will no longer appear torsion phenomenon.

8. Each station of the equipment can be operated independently to meet the needs of use in all aspects.

9. The quality of all our equipment meets the export quality requirements of the industry;

10. the cost of processing unit area workpiece is much lower than manual processing, cost savings;

11. optional wet dust removal to use the absorption of dust, worker operation safety, improve the working environment of workers, safety and environmental protection

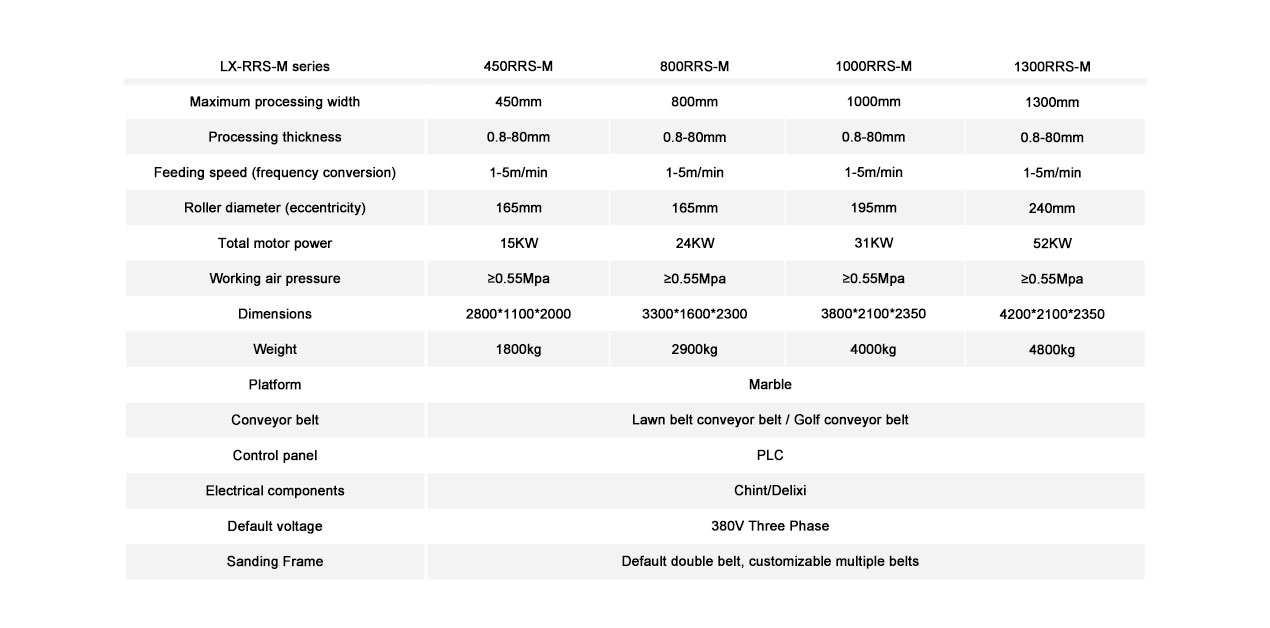

LX-RRS-M	450RRS-M	800RRS-M	1000RRS-M	1300RRS-M
Maximum Processing Width	450mm	800mm	1000mm	1300mm
Processing Thickness	0.8-80mm	0.8-80mm	0.8-80mm	0.8-80mm
Feeding Speed (Variable Frequency)	1-5m/min	1-5m/min	1-5m/min	1-5m/min
Diameter of Rubber Roller (Eccentric)	165mm	165mm	195mm	240mm
Total Motor Power	15kw	24kw	31kw	52KW
Working Air Pressure	≥0.55Mpa	≥0.55Mpa	≥0.55Mpa	≥0.55Mpa
Overall dimensions	2800*1100*2000mm	3300*1600*2300mm	3800*2100*2350mm	4200×2100×2350mm
Weight	1800kg	2900kg	4000kg	4800kg
Platform	Marble
Conveyor Belt	Golf/Turf Belt Conveyor Belt
Control Panel	PLC
Electronic Component	Zhengtai/Delix Electrical Components
Default Voltage	3-Phase 380v

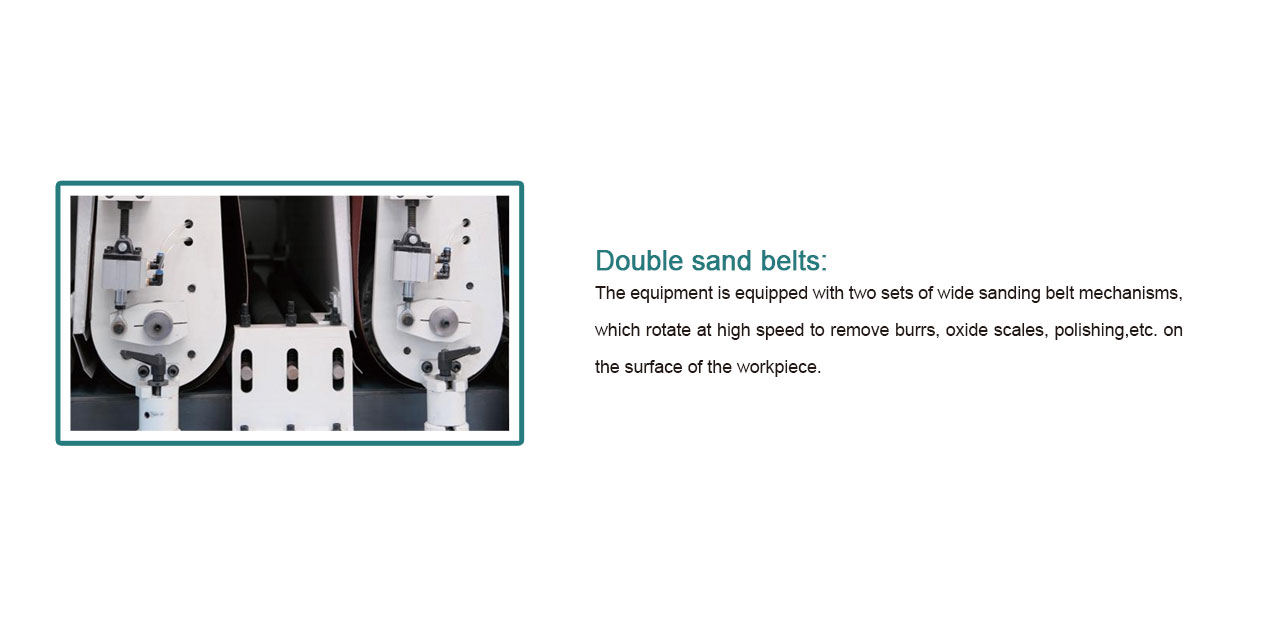

Sanding Frame	Default double sanding belts, can be customized multiple sanding belts

Q: Workpiece thickness
A:Between 0.8-80mm, must be put the same thickness of the workpiece to work together.Q:Can the width be customized?
A:Conveyor table width 450,800,1600, etc. These models basically cover the required size of the workpiece can be customized according to the size. Even larger can be done, if small, 450 is enough.

A: Basically no, unless human error. The main thing is to adjust the thickness of the workpiece, if the workpiece is sanded too heavy, it will hurt the conveyor belt, rubber roller.

A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
