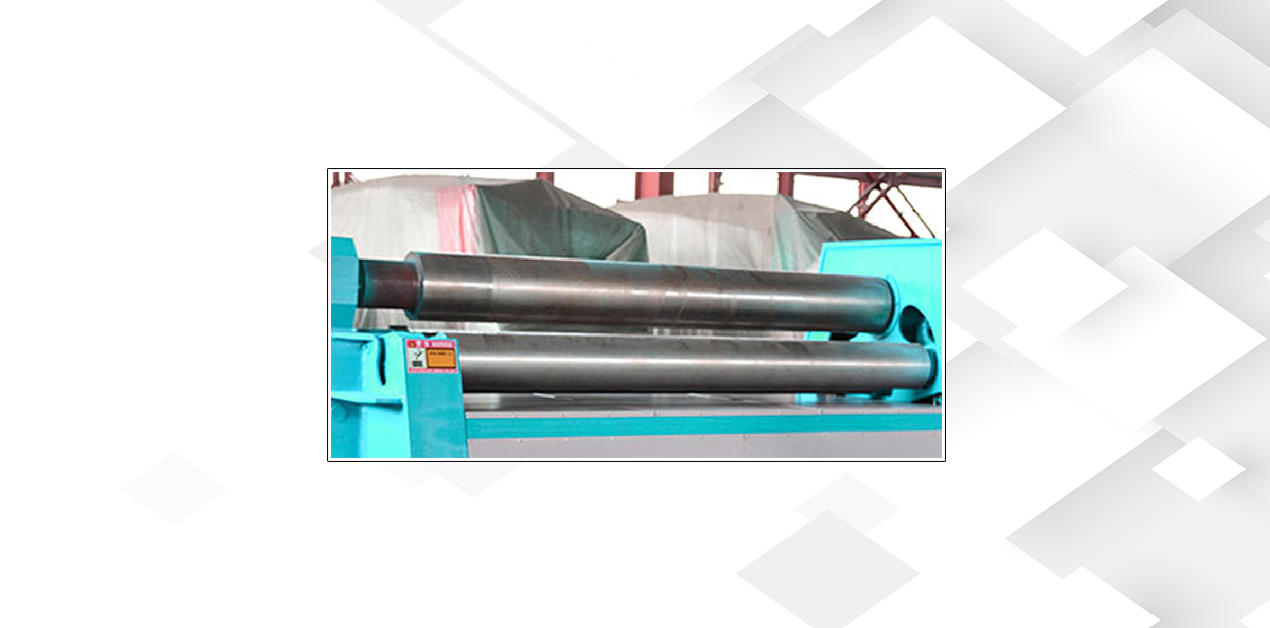

Hollow work roll
The up and down roll movement of the work roll completes the coiling action.

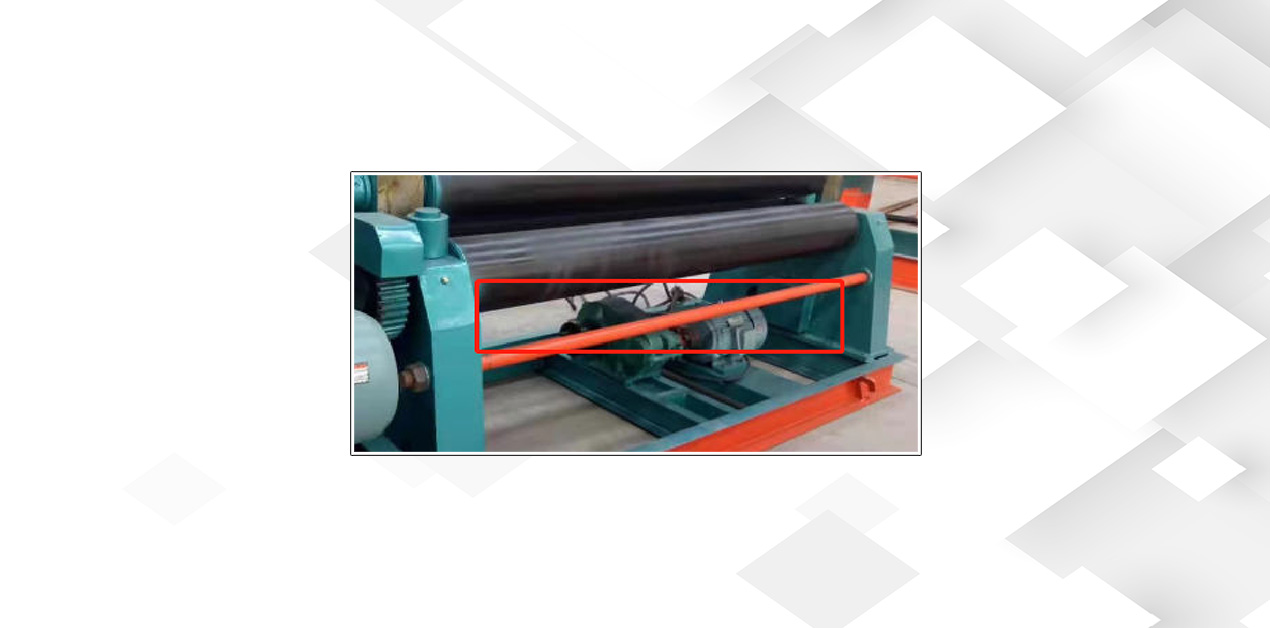

Screw
• The screw height adjustment mechanism is a mechanism that can adjust the height through a screw.
• The mechanism is composed of a screw and a nut. By rotating the screw, the nut is driven to move up and down, so as to realize the height adjustment of the working surface such as the workbench.

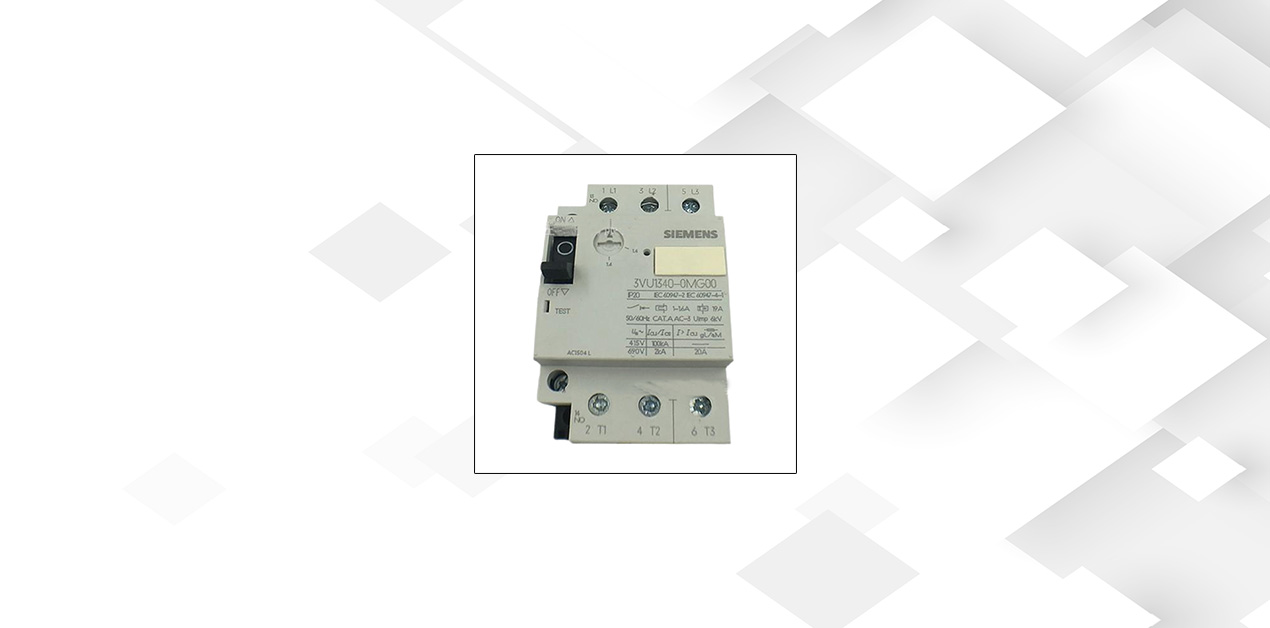

Electrical components
• Electrical components are famous Siemens brands, which is popular in market.
• Stable work ability.

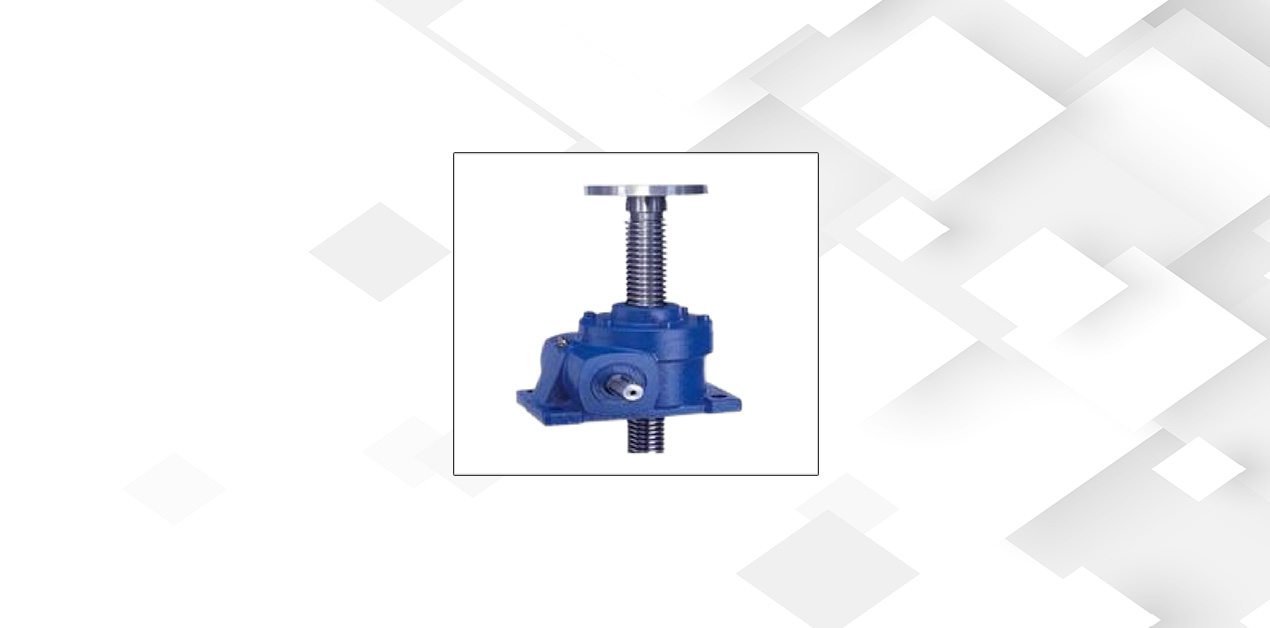

Lifting worm assembly
Lifting freely, flexible operation performance

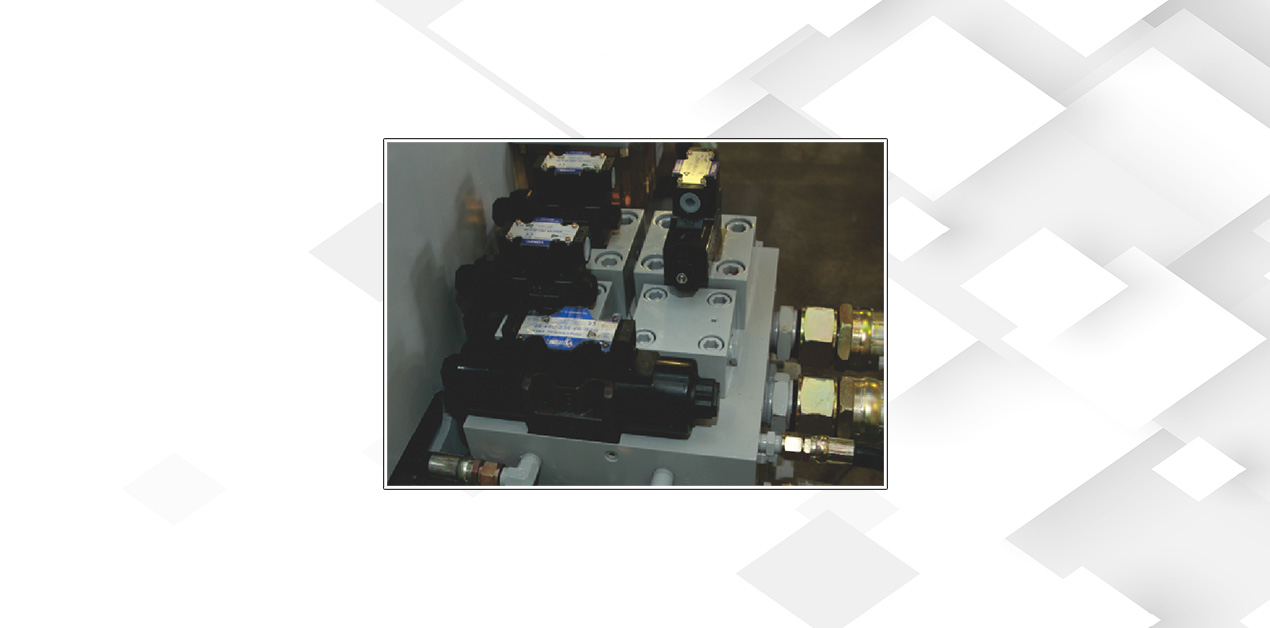

Rolling machine hydraulic system
Stand-alone system,easy maintenance(For hydraulic plate rolling machines)
Brand:Japan NOK

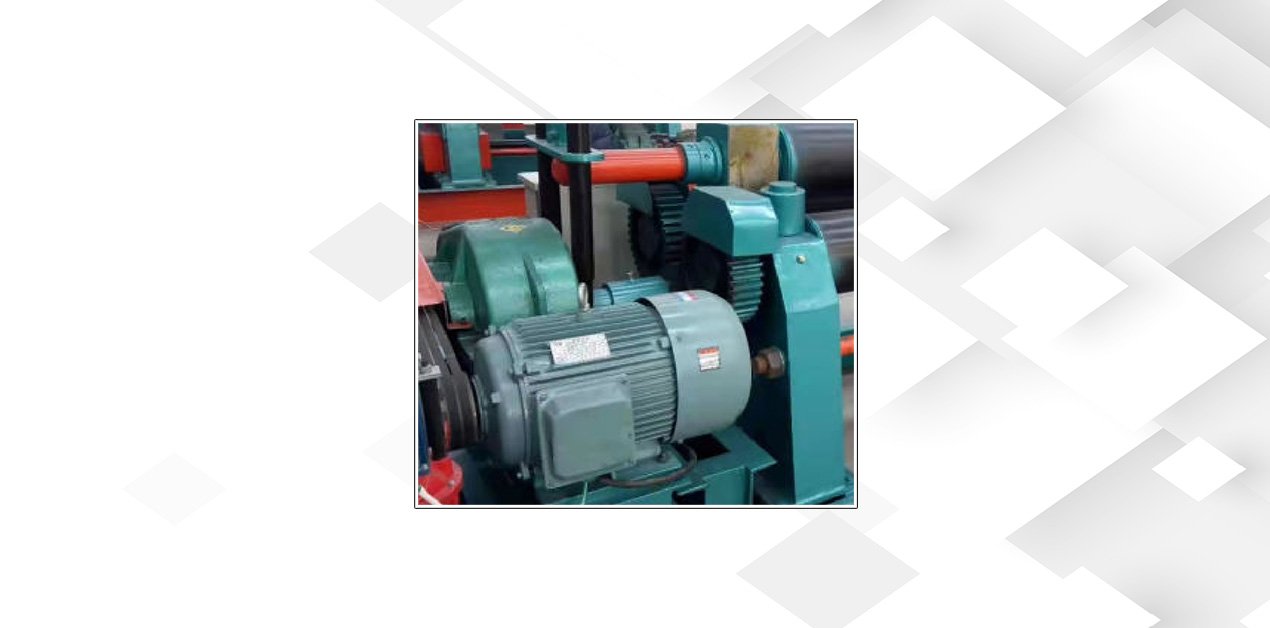

Main motor
Easy installation, easy adjustment, excellent performance, complete solutions.

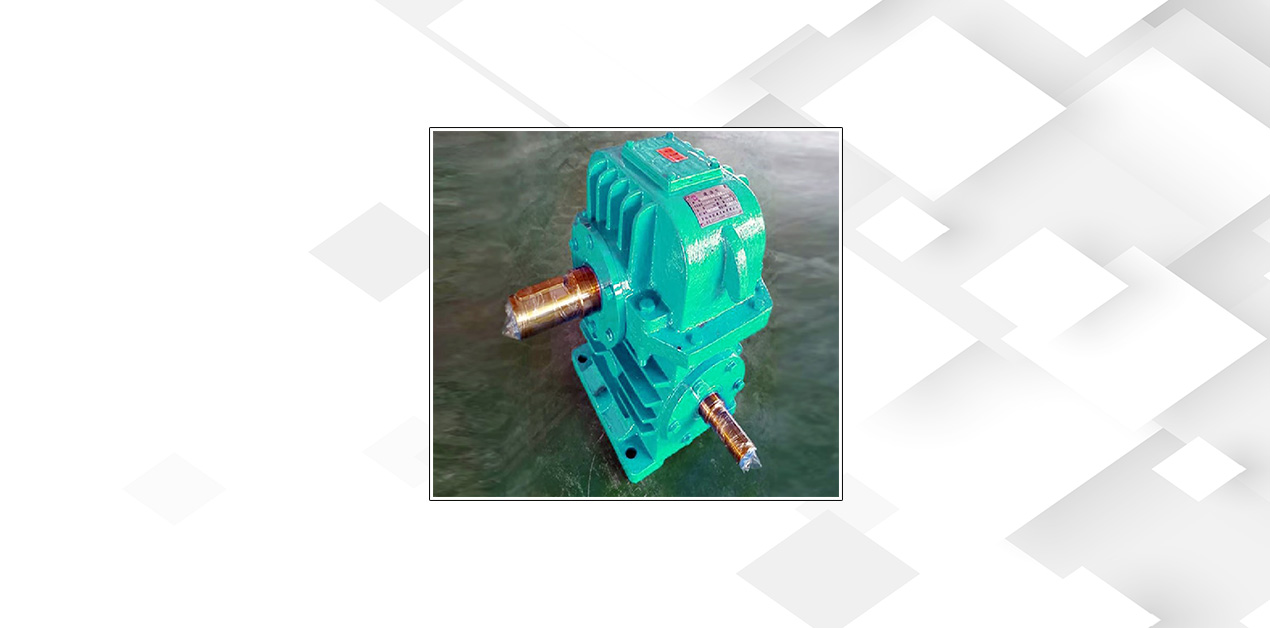

Reducer
The lowest backlash.
The maximum output torque.
The highest torsion rigidity.
High efficiency high quality low noise, lift time lubrication.
High precision, long life.

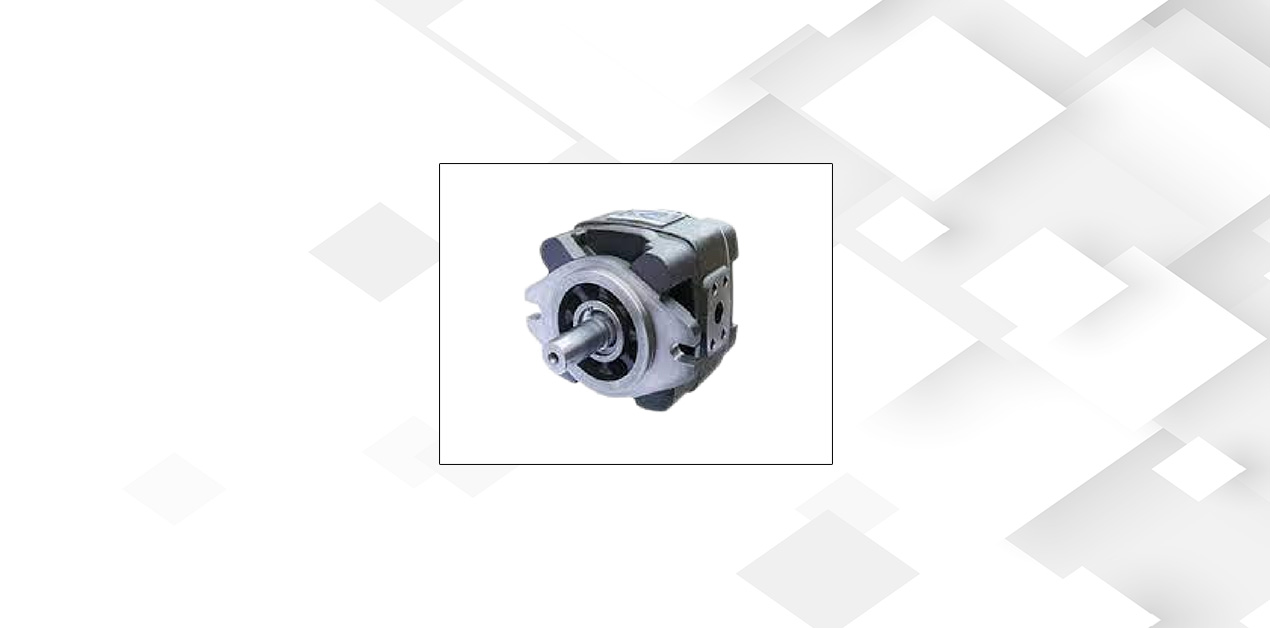

Hydraulic pump

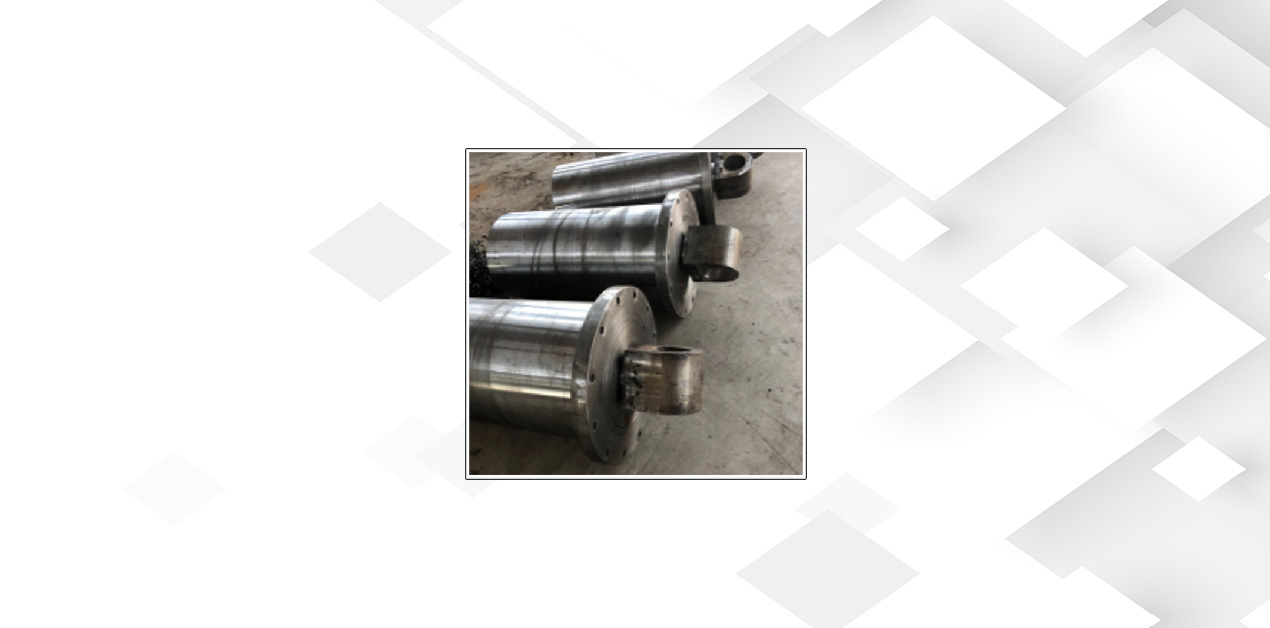

Cylinder
Hollow three-roller plate bending machine consumable parts
1.Turbine shaft: using life more than 3 years
2.Wear-resistant sleeve for shaft head:using life about 3 years
3 roll bending machine parameters
Model number: W11-12×2200
Leading time:15-20 work days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
| Model number | W11-12×2200 |
| Work roll | Hollow work roll(high temperature quenching treatment) |
| Maximum coil thickness | 12mm |
| Maximum width | 2200mm |
| Roller working length | 2230mm |
| Plate Yield Limit | δs≤245Mpa |
| Upper roll diameter | Φ245mm |
| Bottom roll diameter | Φ219mm |
| Main motor power | 7.5kw |
| Reducer | JZQ-350 |
| Dimensions | 2.8×1.0×1.0(m) |
Applicable materials
Carbon steel, stainless steel, aluminum, copper, high carbon steel and other metals.
Application industry
As a mature mechanical processing equipment, the plate bending machine has been widely used in steel, construction, shipbuilding, automobile manufacturing, machinery manufacturing, power equipment manufacturing, pressure vessels, energy industry, and even aerospace and other fields.
The advantage of LXSHOW
As one of the top plate rolling machine manufacturers in the world, LXSHOW continues to lead the plate bending machine industry in the direction of intelligence, automation and environmental protection. We will use sensors, machine learning and other technologies to achieve automatic detection and automatic adjustment, improve production efficiency and product quality; through the automated control system, realize automated production of the entire production line, reduce manual operations, and reduce production costs; the plate rolling machines we produce will also be more environmentally friendly, reduce waste gas and waste water emissions, use clean energy, and reduce the effect on the environment. LXSHOW will continue to work hard to provide more high-quality and efficient products for various industries.
