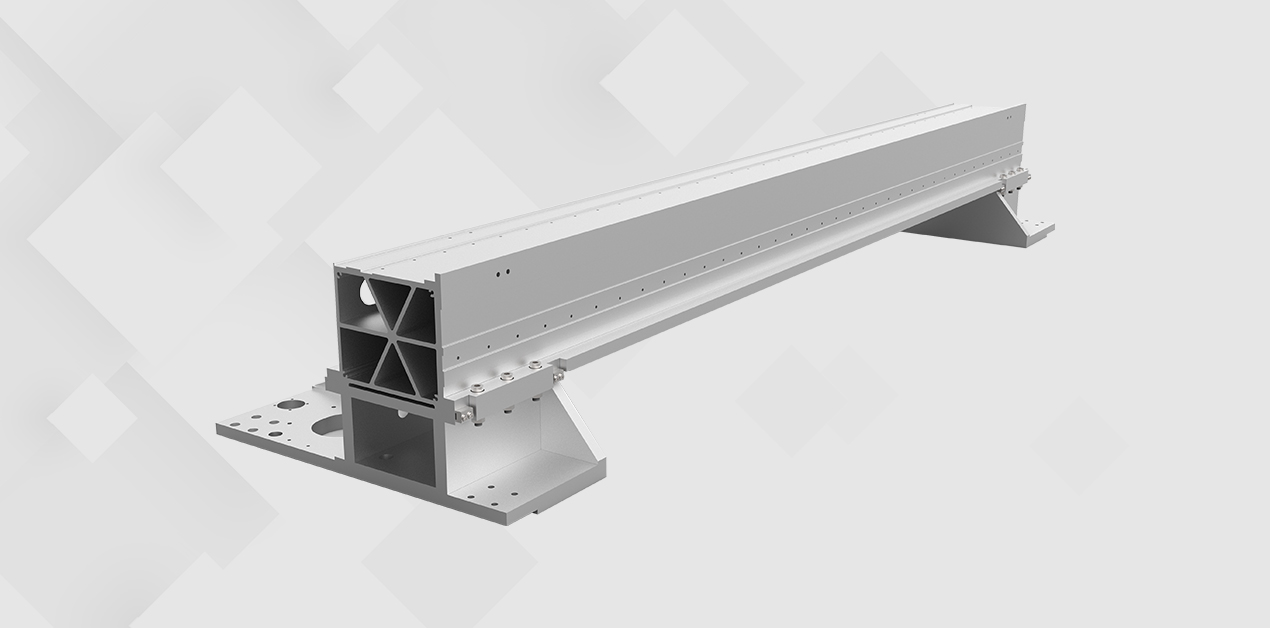

AVIATION ALUMINUM GANTRY
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.
After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

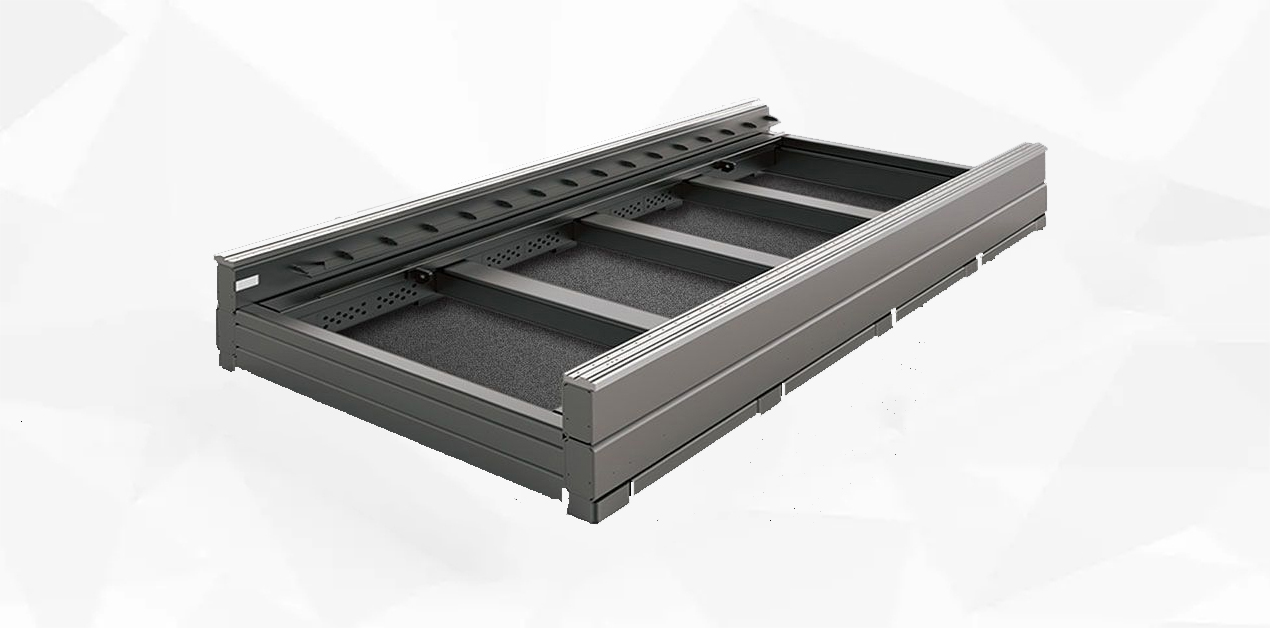

THE SEGMENTED RECTANGLE LASER TUBE WELDED BED
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide raiso as to effectively avoid the deformation of the bed.

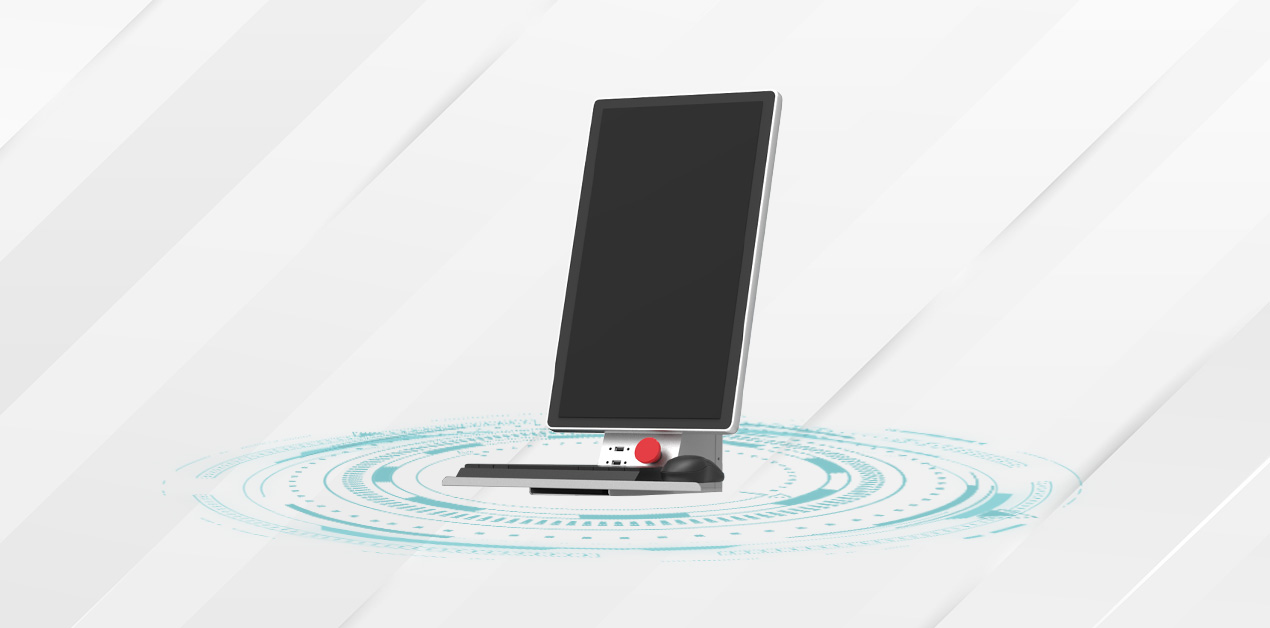

BOCHU SYSTEM
Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts.Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.
●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

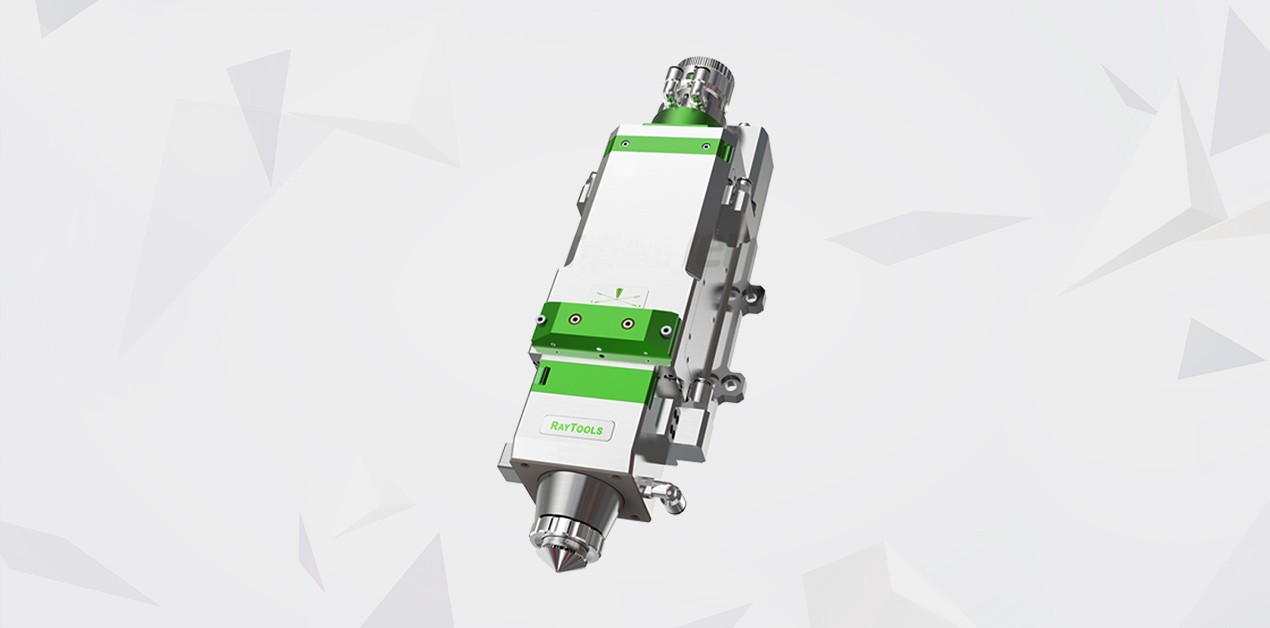

INTELLIGENT AUTOFOCUS
The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

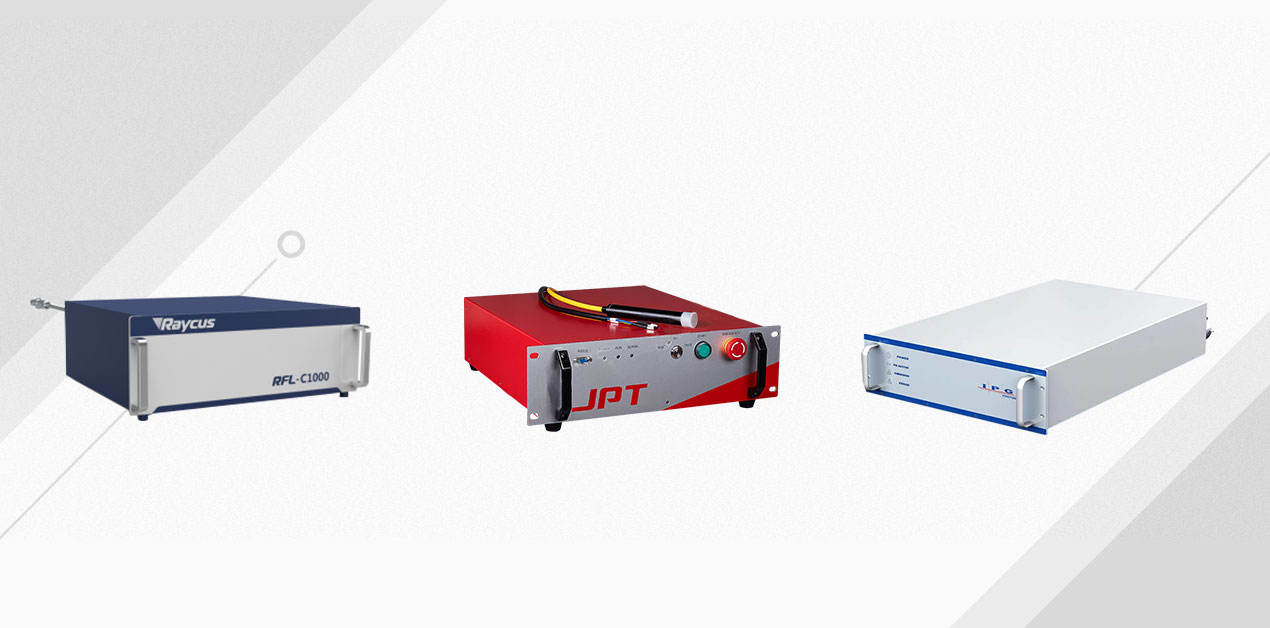

GENERATOR USING LIFE
The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.
Generator Brand: JPT/Raycus/IPG/MAX/Nlight
TRANSMISSION AND PRECISION
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Model Number: LX3015C
Lead time: 10-15 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 4626*2876.5*1805mm
Machine weight: 2800KG
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
| Machine Model | LX3015C |
| Power of Generator | 1000/1500/2000W（optional） |
| Dimension | 2500*4440*1860mm |
| Working Area | 1500*3000mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |
LX3015C 1000W 2000W CNC OPTICAL METAL SHEET PLATE FIBER LASER CUTTING MACHINE APPLICATION
Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
