Wholesale LX3015FT Best Metal Sheet and Tube raycus Fiber Laser Cutting Machine with Rotary price stainless steel Carbon Steel Iron 2000w 3000w 4000w 6000w Supplier and Manufacturer

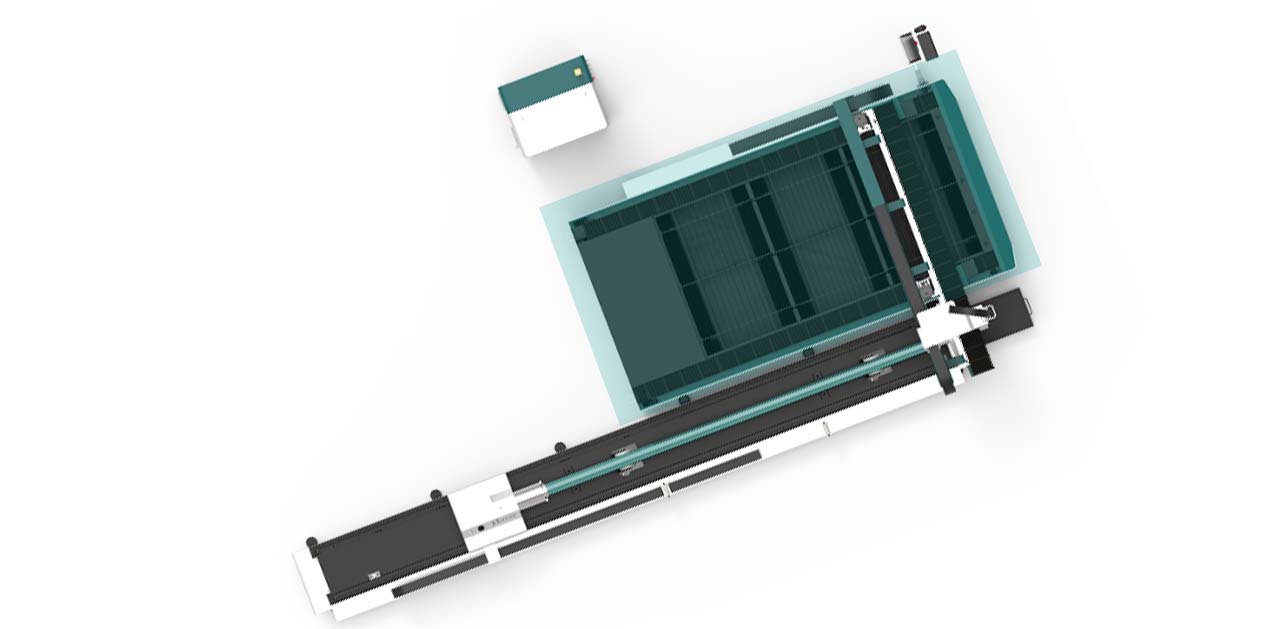

DUAL USE AND COST-SAVING

LXSHOW FT series fiber laser cutting machine can not only cut metal plates,but also metal pipes. It has many uses and can save the space of more than 50%,which effectively improve productivity.

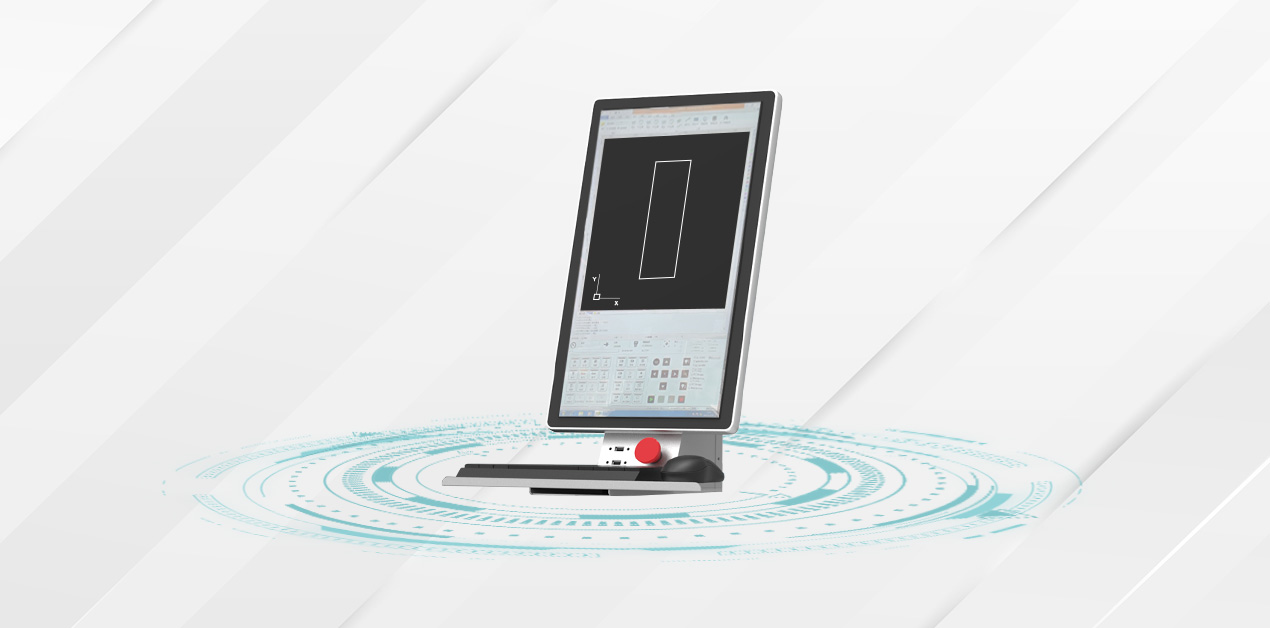

BOCHU SYSTEM

Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.

●Intelligent and easy to operate
●Real-time monitoring of core components
● Fast connection speed, no need to wait
● Compatible with various kinds of graphic files, including DXF, PLT, DWG, NC code
●Supported languages: English, Russian, Korean, Simplified Chinese, Traditional Chinese

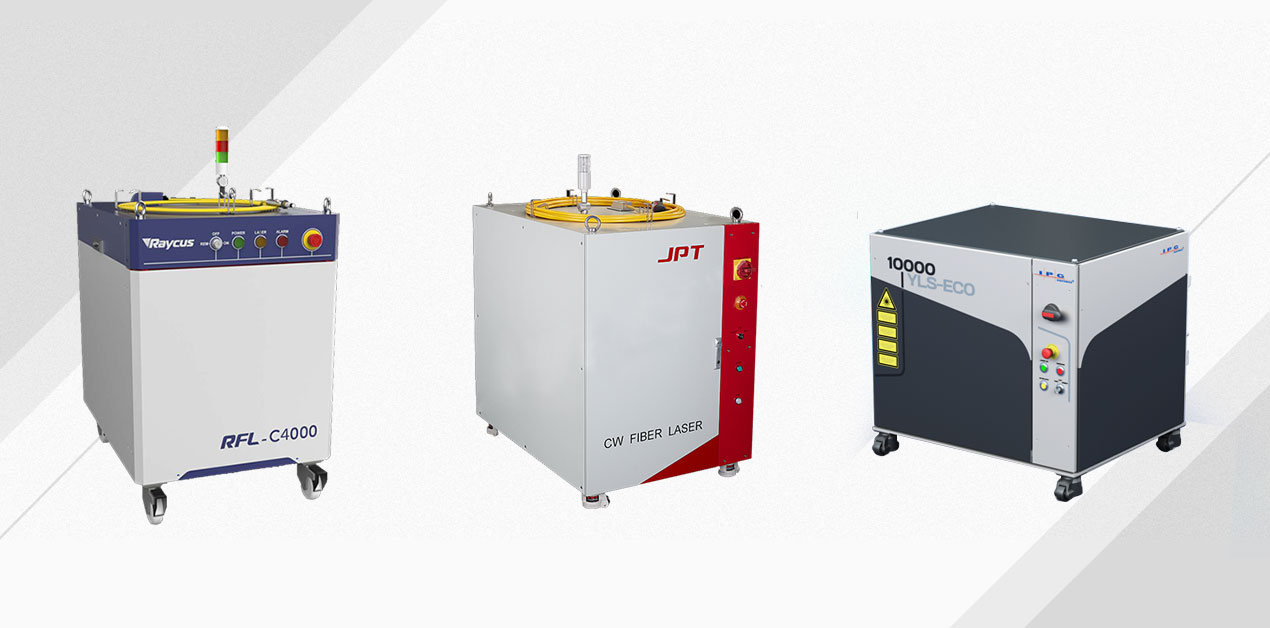

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

LASER CUTTING HEAD

Simple operation and low maintenance cost.
Auto focus, active obstacle avoidance, automatic cooling.
In batch cutting, it can stably cut plates of different thicknesses.
Cut sheets with higher efficiency and save gas consumption.
Abnormal warning.
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

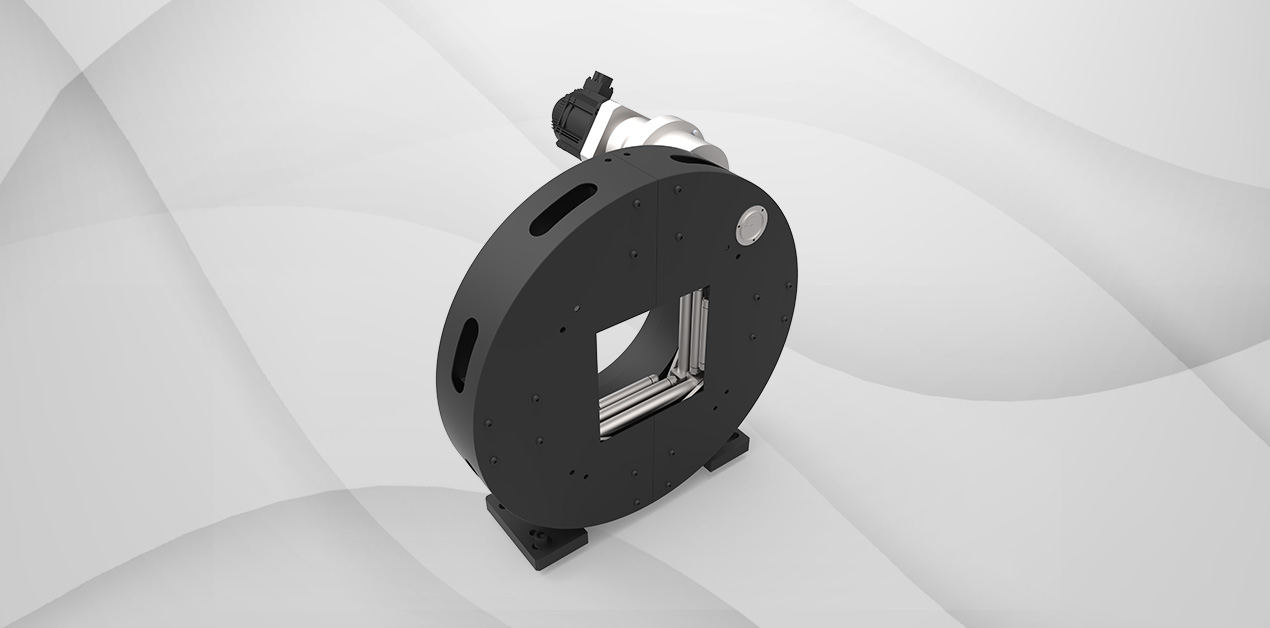

FULL-AUTOMATIC DOUBLE PNEUMATIC CHUCKS

The clamping speed of the fully automatic pneumatic chuck is three times that of the electric chuck. Stronger grip for stable grip on heavy pipe.

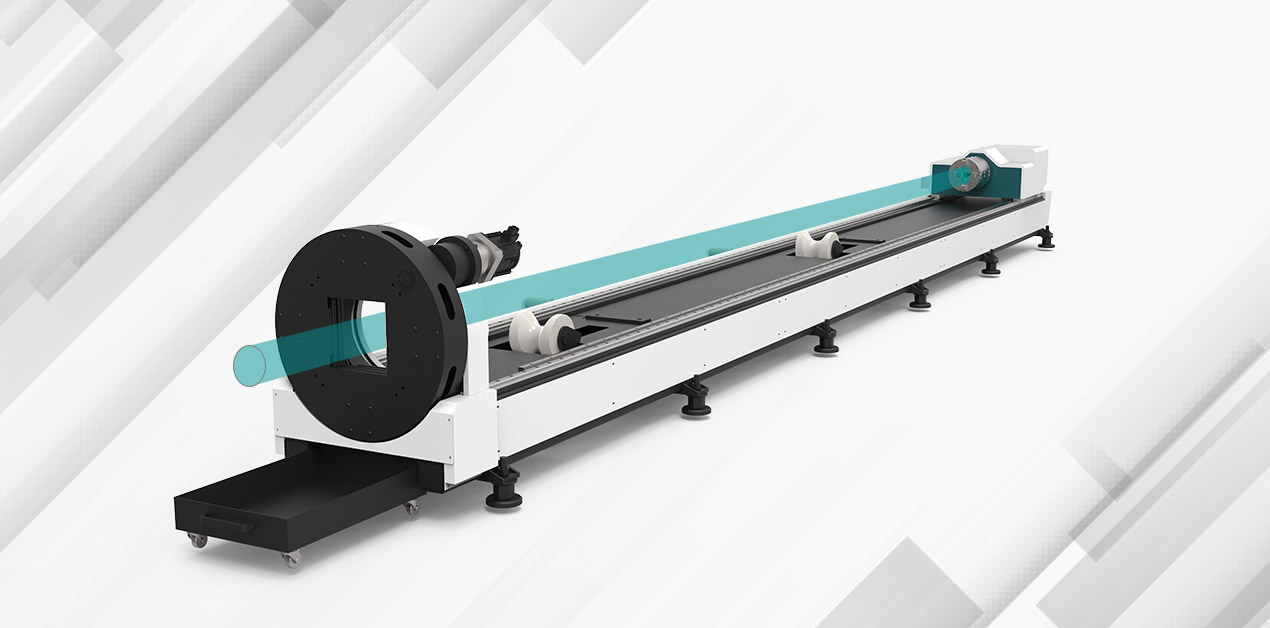

Chuck: Both pneumatic controlRotation length: standard 6m, 8m, other sizes can be customized.
Swivel diameter: 160/220mm is standard. Other sizes can be customized.

Rotary Length: 6m standard,8m and other size can be customized.

Rotary Diameter: 160/220mm is standard. Other size can be customized.

Chuck: Both pneumatic control

PNEUMATIC CHUCK CLAMPING DESIGN

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

PROFESSIONAL CLAMP DESIGN

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

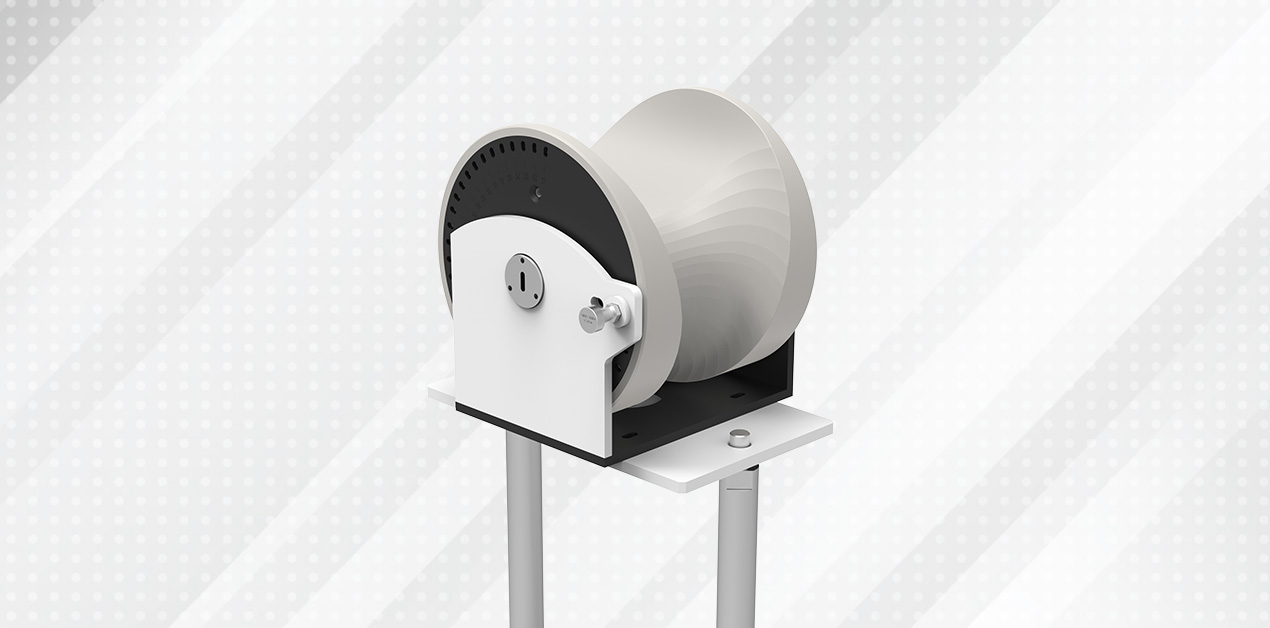

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

INDEPENDENT CONTROL CABINET

• Insulate from dust

The generator and all electrical components are installed in the control cabinet, which can be isolated from dust, protect the electrical components, and thus have a longer service life.

• Automatic thermostat

The built-in air conditioner has an automatic constant temperature, which can avoid damage to electrical components due to excessive temperature during its operation.l cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.

Model Number: LX3015FT
Lead time: 10-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
5 Machine Size: (About)
Rotary size: 8000*1600*1150mm

Machine size(without rotary): 4160*2200*1980mm
Machine weight: 6500KG(About)
Brand: LXSHOW
Warranty:3 years
Shipping:By sea/By land

Machine Model	LX3015FT
Power of Generator	1000/1500/2000/3000/4000/6000W（optional）
Dimension	355089501860mm
Working Area	1500*3000mm
Repeated Positioning Accuracy	±0.02mm
Max Running Speed	120m/min
Max Acceleration	1.5G
Specified Voltage And Frequency	380V 50/60HZ

LX3015FT 4000W 6000W 1200W CNC METAL TUBE SHEET FIBER LASER CUTTING MACHINE APPLICATION

Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring steel , Iron , Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, Metal, Metal, etc.

Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
