Wholesale LX6020DHT CNC Plate and Tube Integrated Fiber Laser Cutting Machine for Stainless Steel Aluminum Supplier and Manufacturer

MAIN PARTS

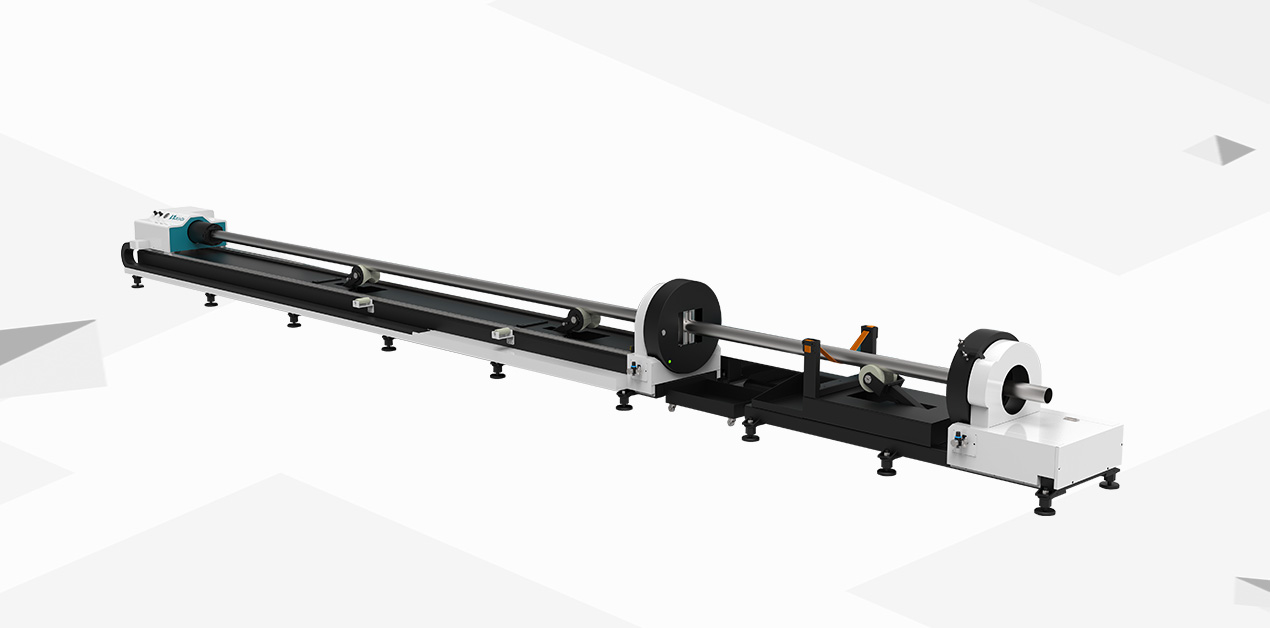

ROTARY

Diameter 220mm length 6m

Professional Pneumatic Chuck

with supporter

旋转轴

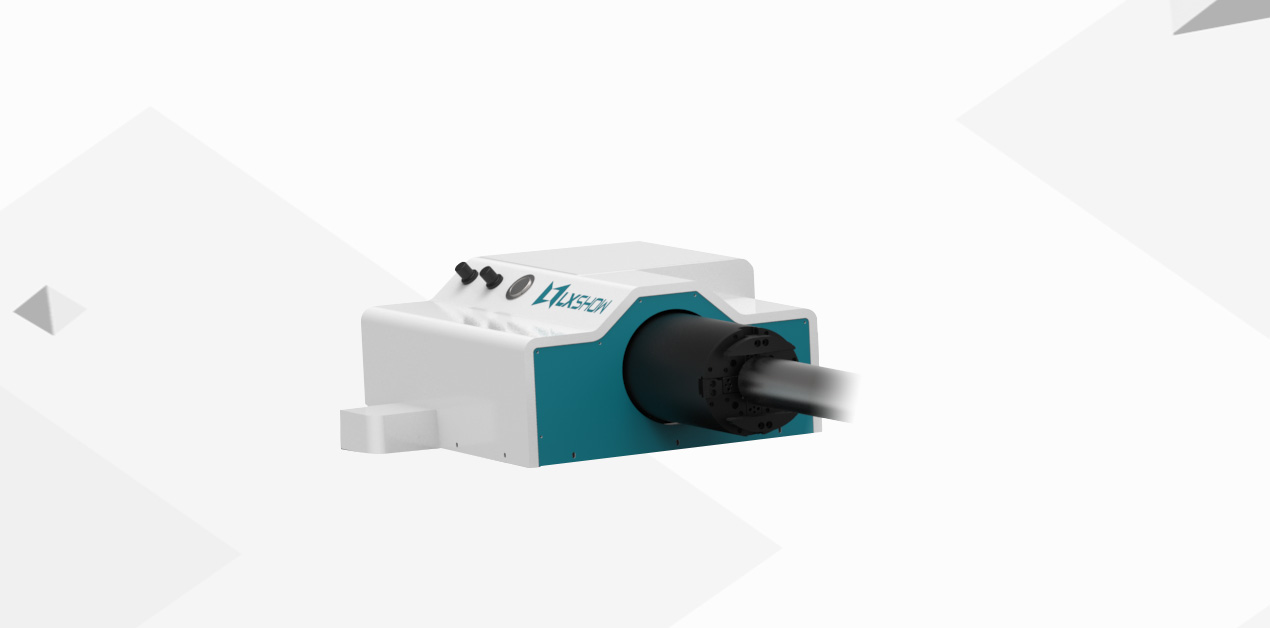

CLAMP DESIGN

Automatic pneumatic chuck Self-centering pneumatic chuck

Fast automatic centering and clamping pipe

Rotation inertia is low, and dynamic performance is strong.

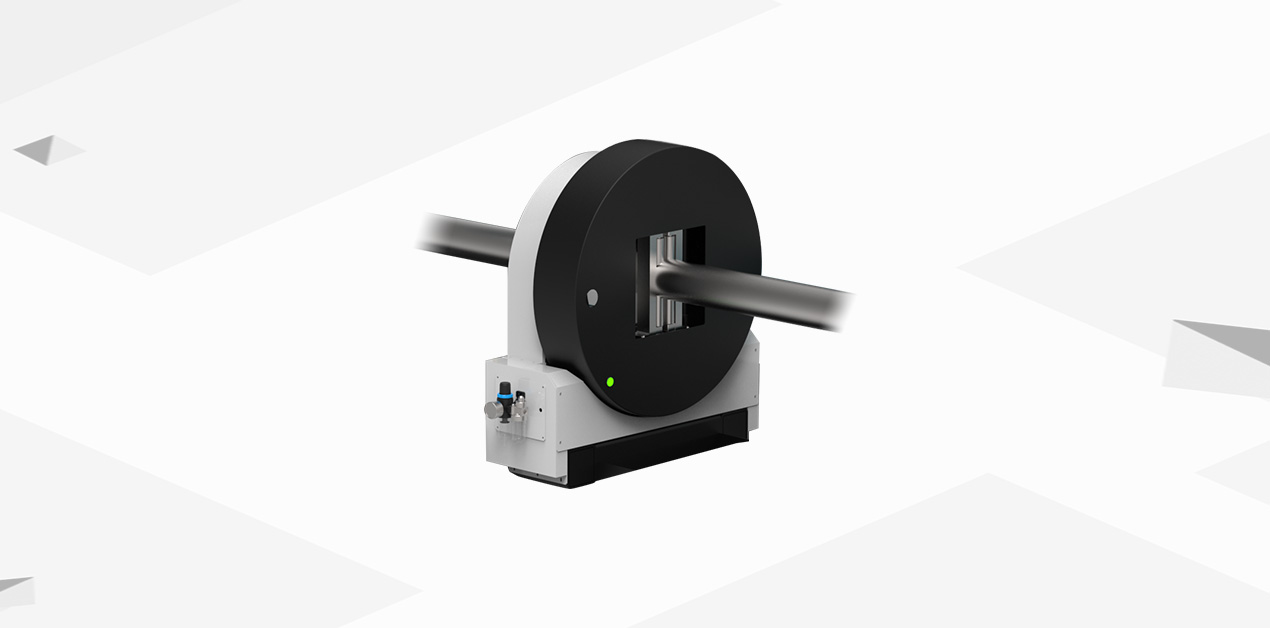

PNEUMATIC CHUCK

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

PARAMETER

Model	LX6020DHT Fiber laser cutting machine
Working Area	2000*6000mm
Laser Power	3000W
Laser Generator	MAX
Laser Wave Length	1064nm
Working Table	Sawtooth
Maximum Idle Running Speed	120m/min
Maximum acceleration	1.2G
Position Accuracy	±0.02mm/m
Repeat Positional Accuracy	±0.01mm
Metal style	Metal sheet and tube
Control System	Bochu fscut3000S
Position Type	red dot
Working Voltage	380V 50Hz 3 phases
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	More than 100,000 hours
Fiber laser cutting head	Raytools BM110
Cooling System	S&A/Tongfei/Hanli industrial water chiller
Work Environment	0-45°C, Moisture 45-85%
Delivery time	25-35 work days (According to actual season)
