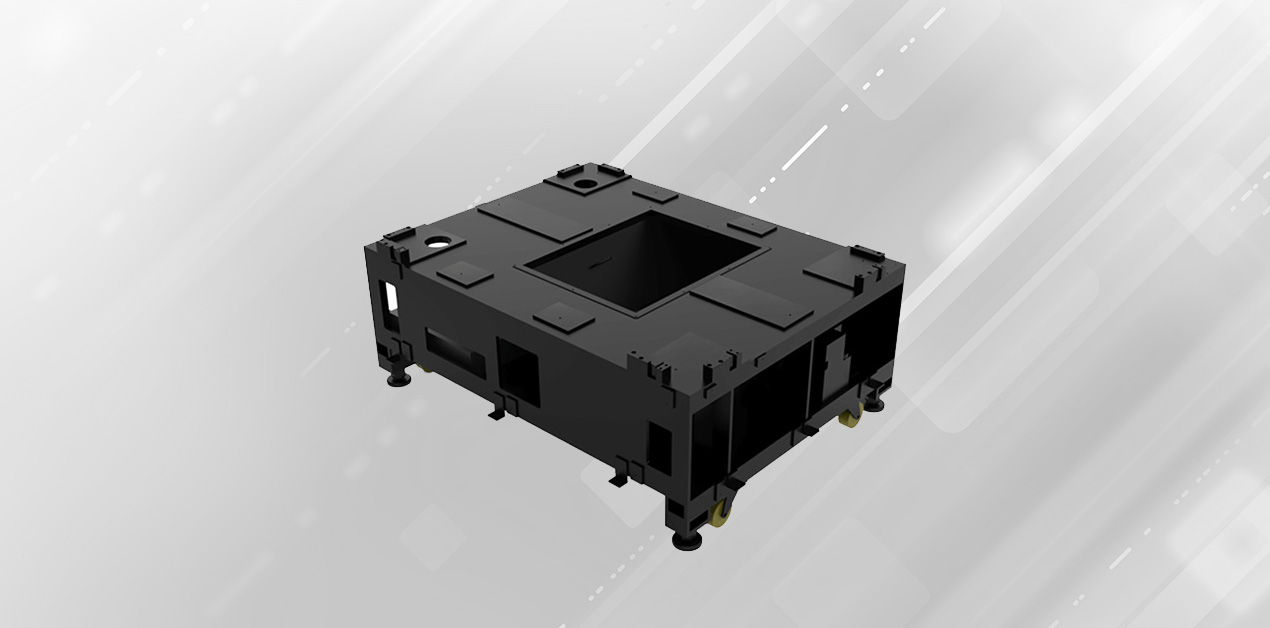

Strong stability, high precision, 20 years without deformation
Adopted carbon structural steel with good toughness, ductility, welding performance and thermal processing;Stress annealing and vibration aging treatment eliminate the stress in welding and processing of machine bed, the machine bed precision is long-lasting.

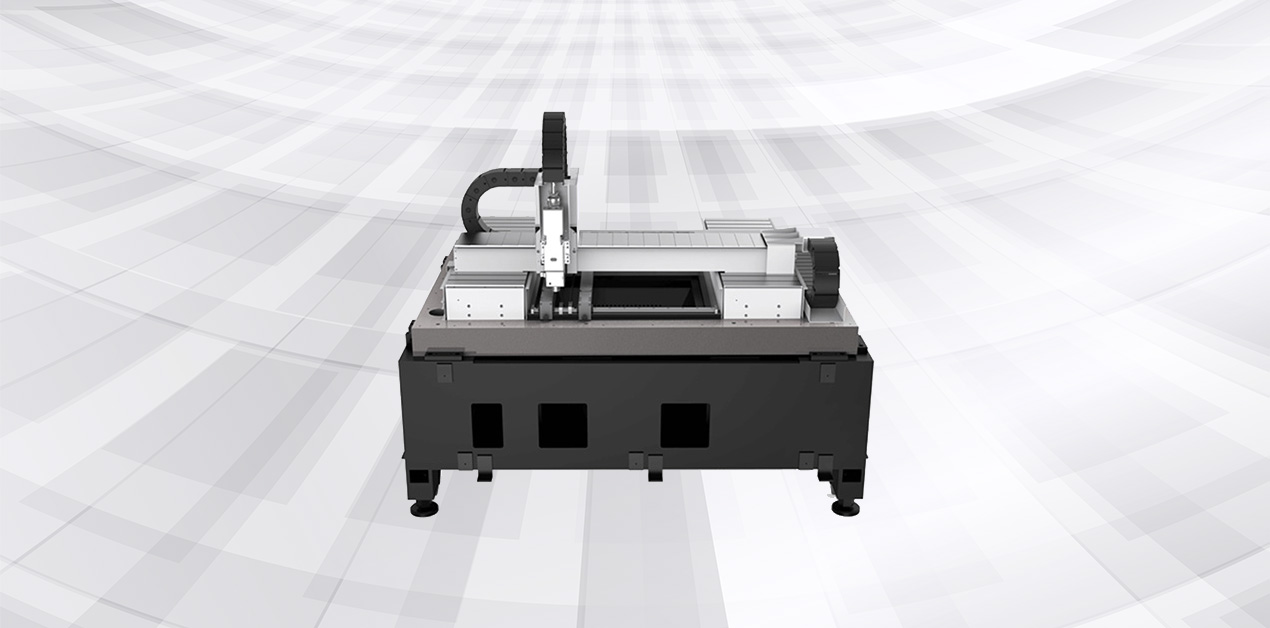

DUAL RAIL AND DUAL DRIVER DESIGN
Both sides of the Y-axis are designed with double guide rails and double ball screws, which can avoid the deformation of the cutting line caused by the bending of the Y-axis screw, thereby ensuring the cutting accuracy.

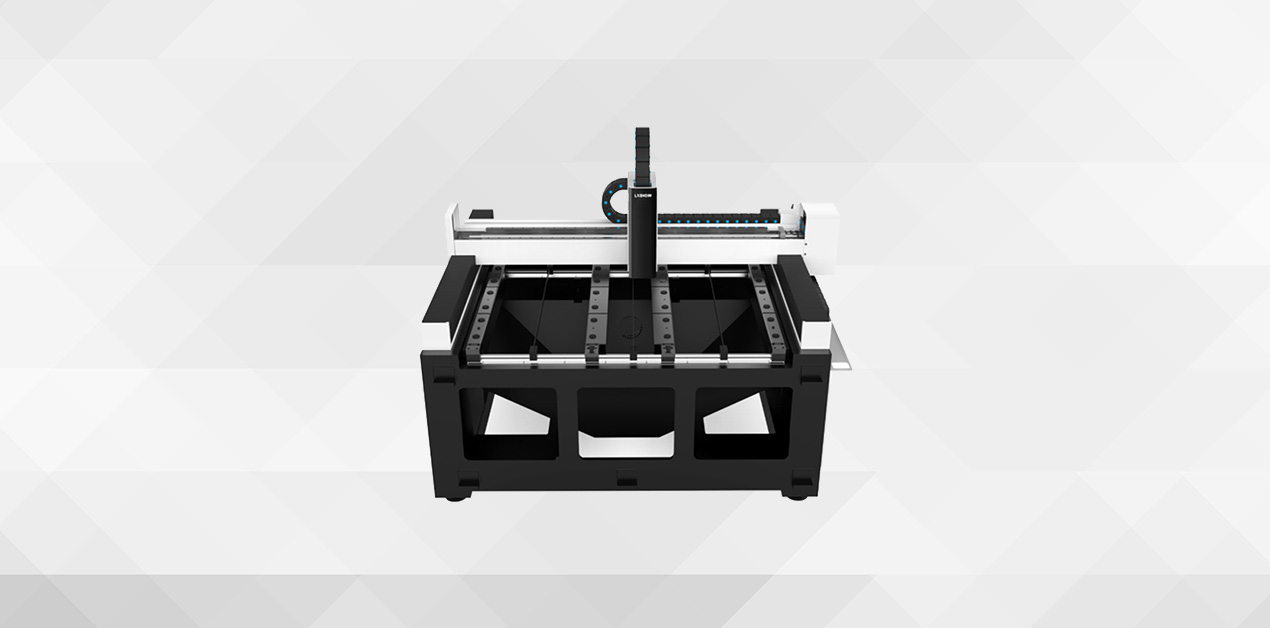

ADVANTAGES OF CAST ALUMINUM BEAMS
It has good durability and shock resistance, and has strong ductility. Not easy to rust, corrosion resistant. Because aluminum is very stable and resistant to oxidation.

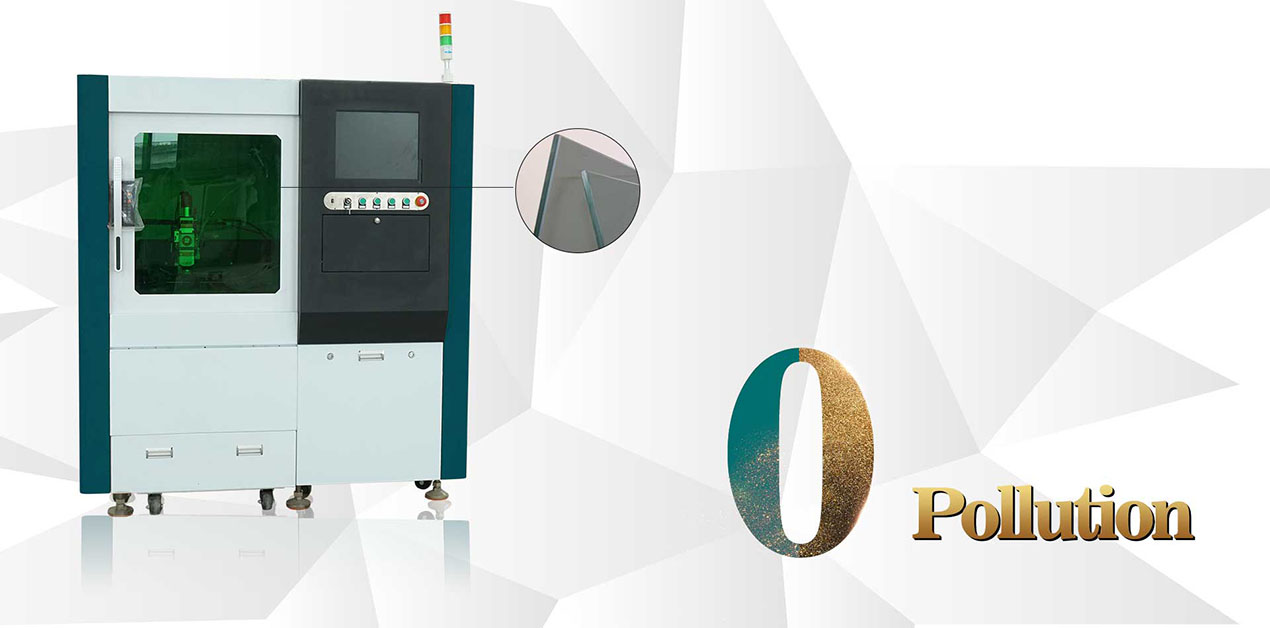

SAFETY AND ENVIRONMENT PROTECTION
With a fully enclosed design;
The observation window adopts an European CE Standard laser protective glass;
The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

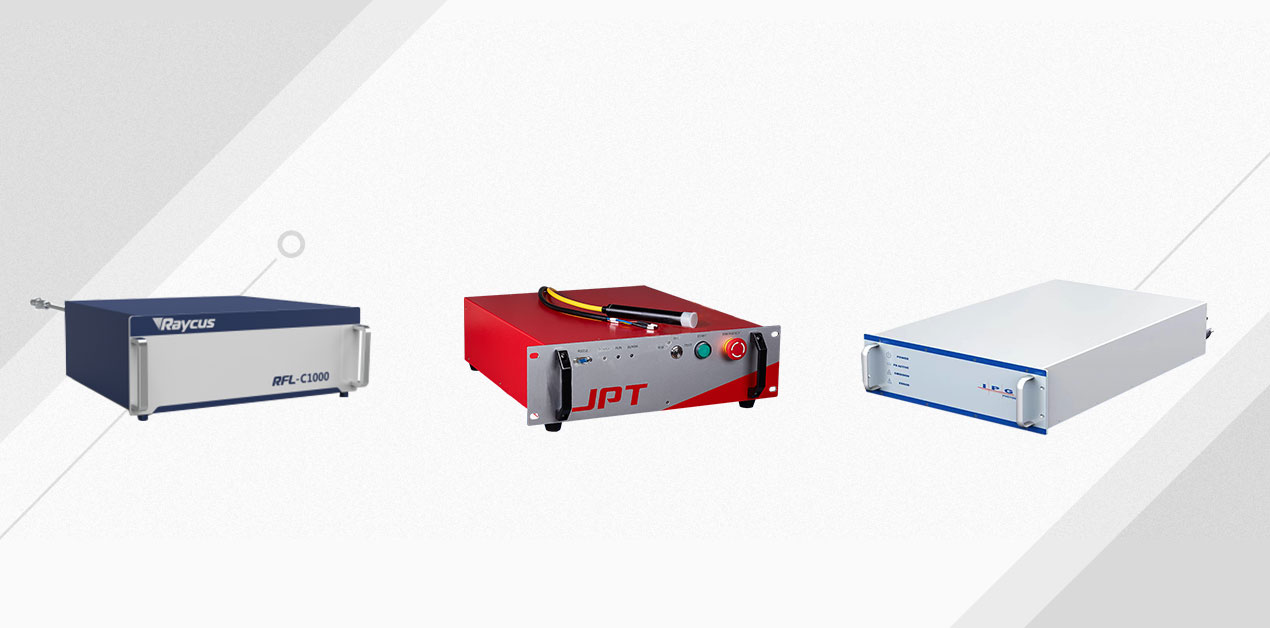

GENERATOR USING LIFE
Generator using Life: The theoretical life of the generator is 10,00000 hours
Optional brands of generators: Our partners: JPT/Raycus/IPG/MAX/Nlight

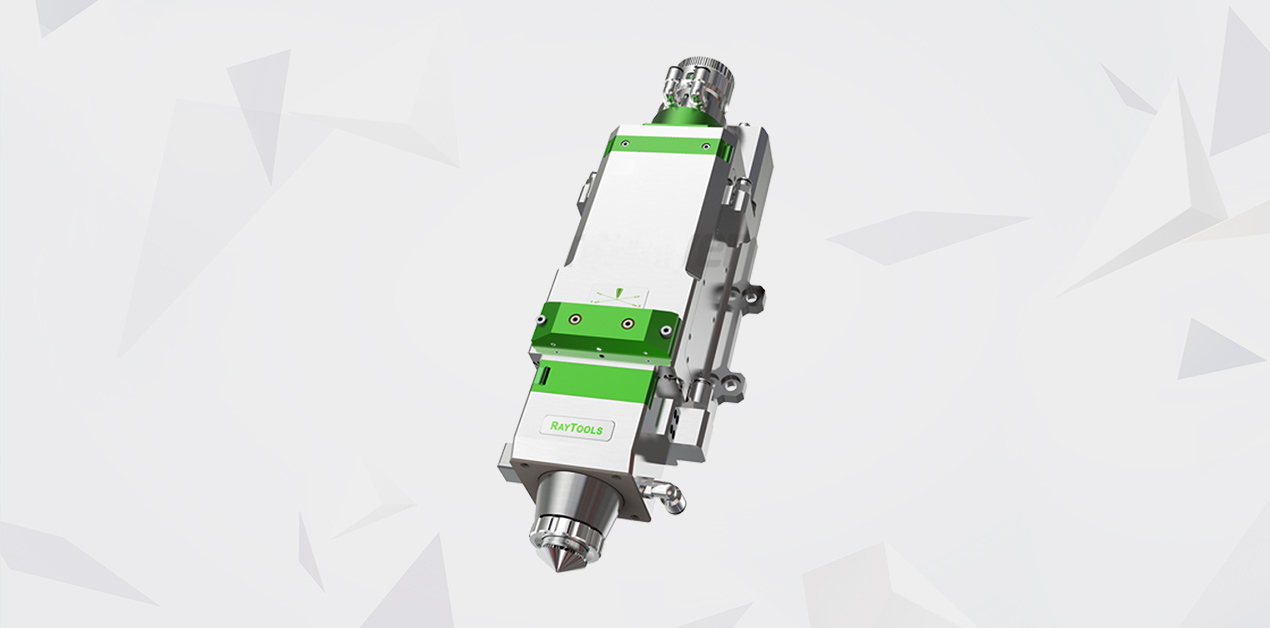

LASER CUTTING HEAD AUTO FOCUS
The automatic focusing of the cutting head can realize automatic cutting of plates of different thicknesses. Autofocus lenses are ten times faster than manual focus.
long lasting: Both the collimating mirror and the focusing mirror are equipped with water-cooled heat sinks, which can effectively reduce the temperature generated during the cutting process and improve the service life of the cutting head.
Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.
Model Number: LX6040G
Lead time: 10-15 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 1910*1460*2060mm
Machine weight: 10000KG
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
| Machine Model | LX0640G |
| Power of Generator | 500/750/1000/1500W（optional） |
| Transmission Mode | Grinding Precision Screw Transmission |
| Working Area | 600*400mm |
| Repeated Positioning Accuracy | ±0.006mm |
| Max Running Speed | 40m/min |
| Max Acceleration | 0.5G |
| Specified Voltage And Frequency | 220V 50/60HZ |
LX6040G Mini small cnc laser metal steel sheet cutter 500w 750w 1000w 1kw 1500w Application
Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
