Wholesale LX83TⅣ New! Four Chuck heavy-duty Fiber Laser Metal Tube Cutting Machine 4000W 6000W 8000W 12000W Supplier and Manufacturer

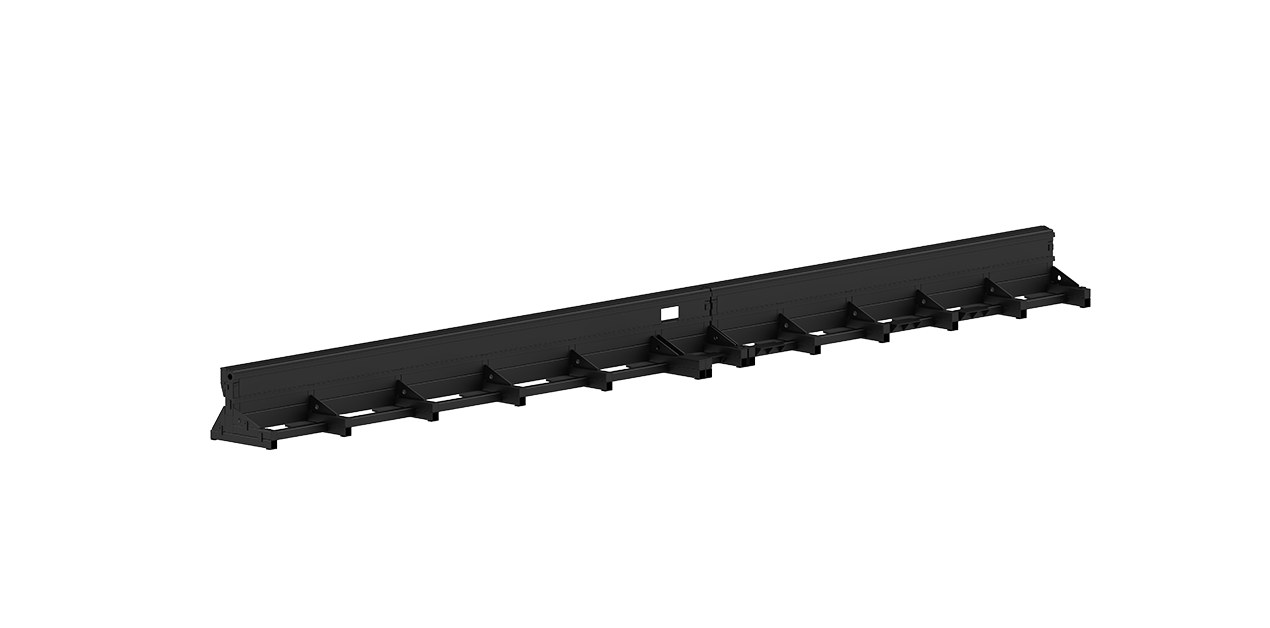

The Segmented Rectangle Laser Tube Welded Bed

Good rigidity, high precision, no deformation during the life cycle;

Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance

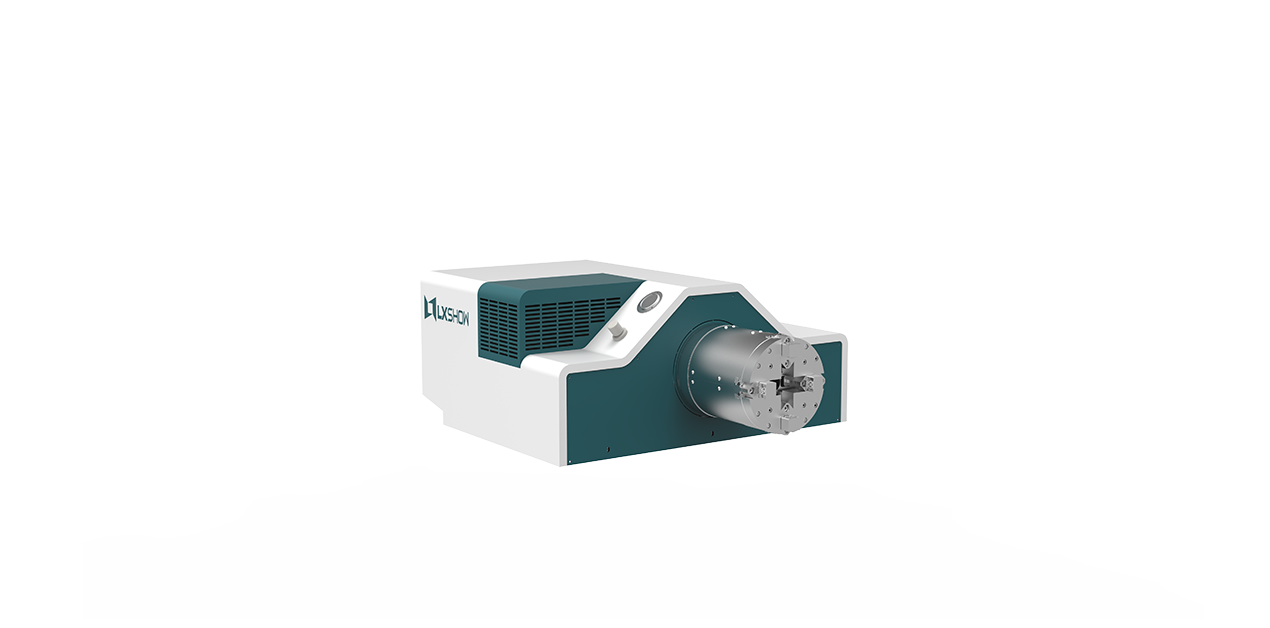

Pneumatic Chunk Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320350,Φ20-Φ500 is optional)

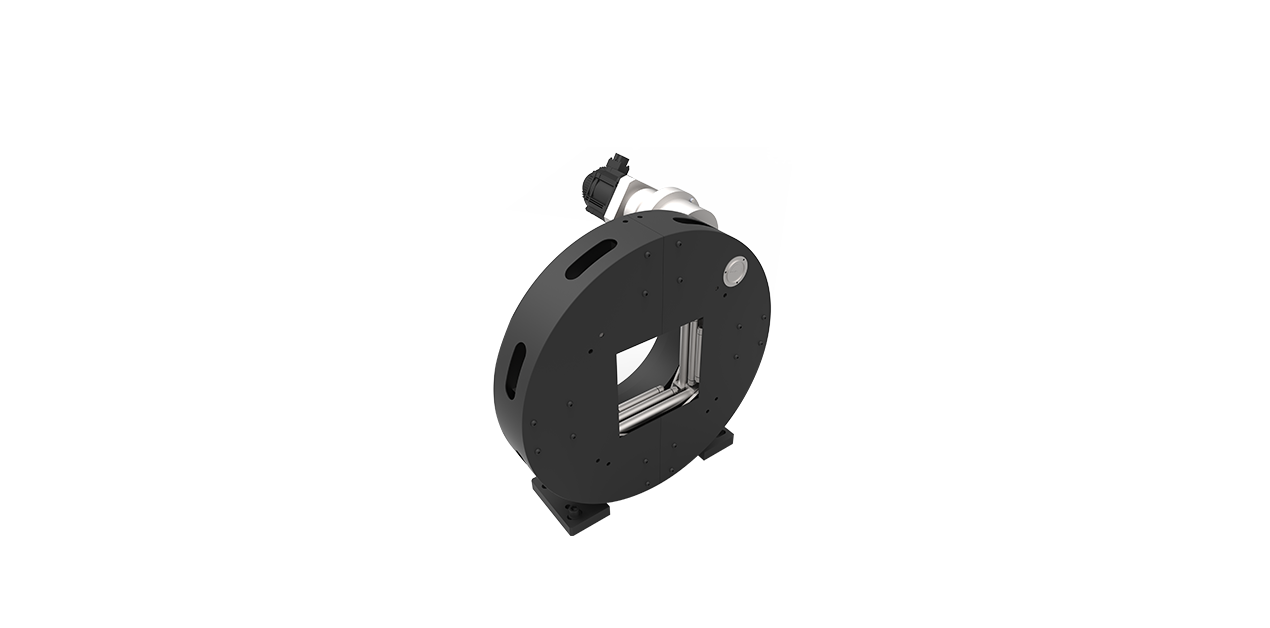

Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability

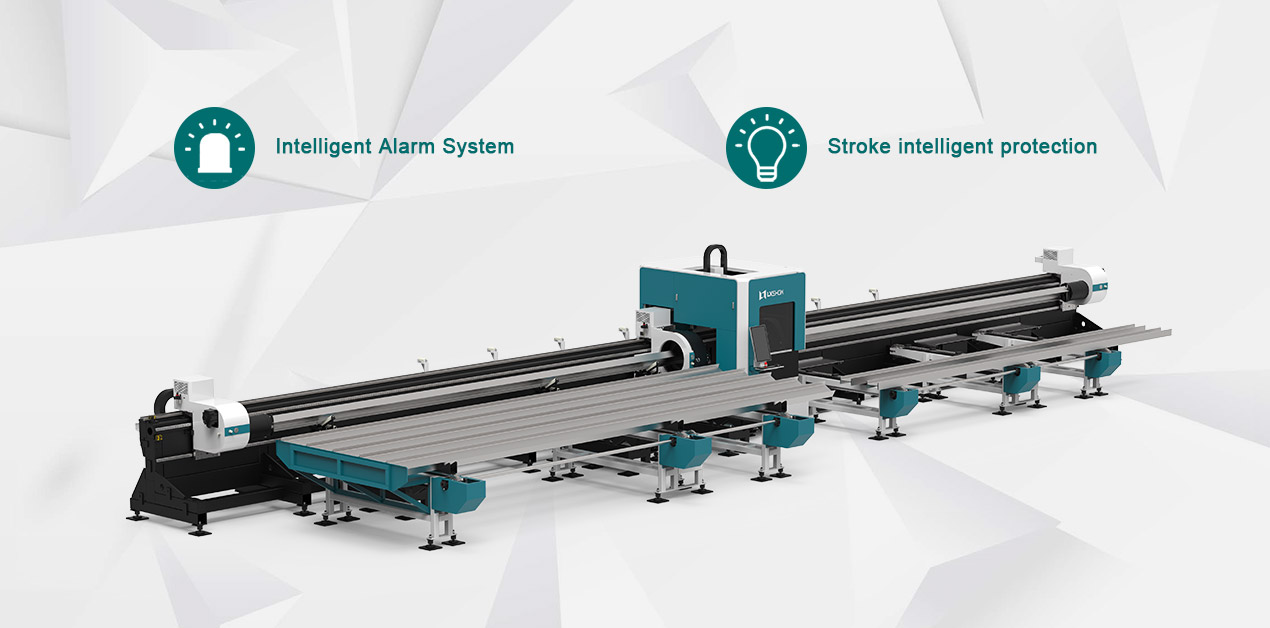

Intelligent Alarm System

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

Stroke intelligent protection

Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

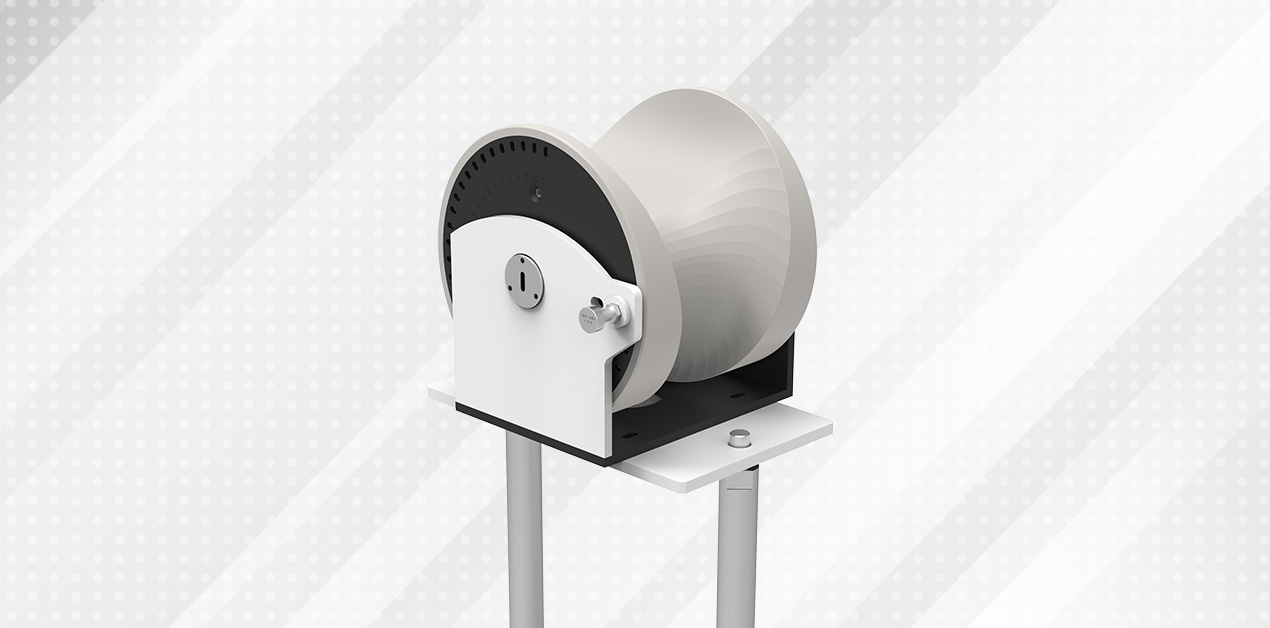

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation

problems in the process of long tube cutting

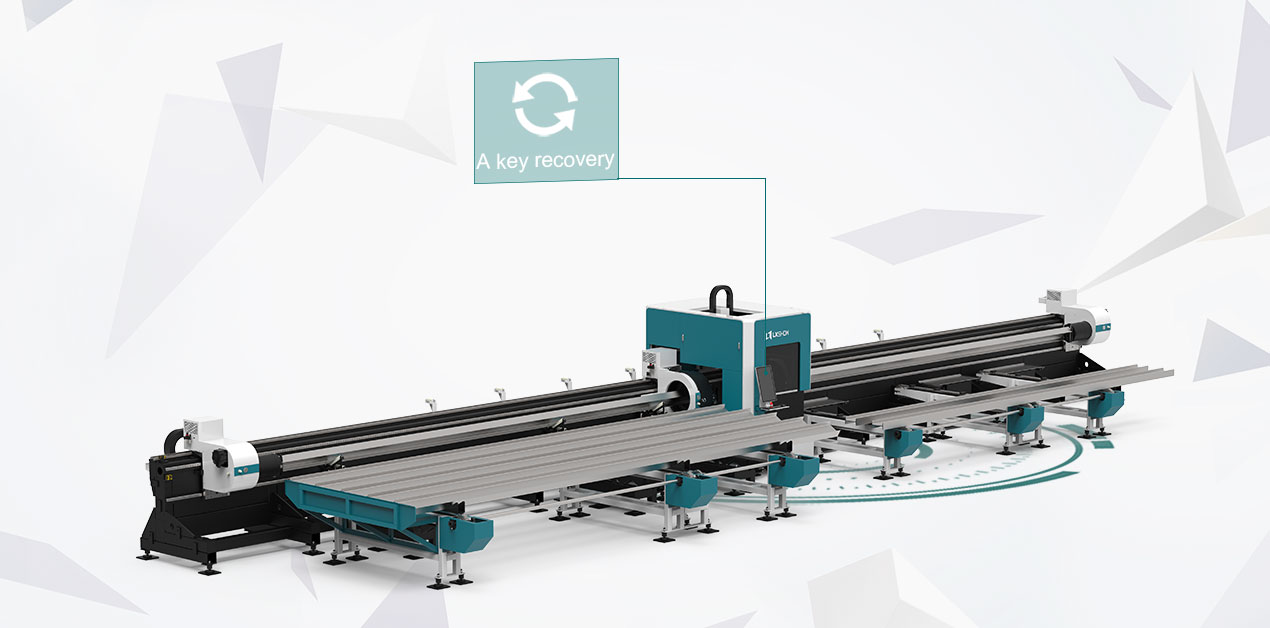

The Absolute Value Servo Motor

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation

Intelligent Alarm System

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

Stroke intelligent protection

Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

Machine Model	LX83TIV
Power of Generator	1000-30000W
Chuck	Front and rear dual pneumatic chucks
Clamping Range	Φ20-Φ220/Φ20-Φ350 /Φ20-Φ500
Repeated Positioning Accuracy	±0.02mm
Specified Voltage And Frequency	380V 50/60HZ

Model Number: LX83TⅣ
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C
Machine Weight:6100KG

Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Application

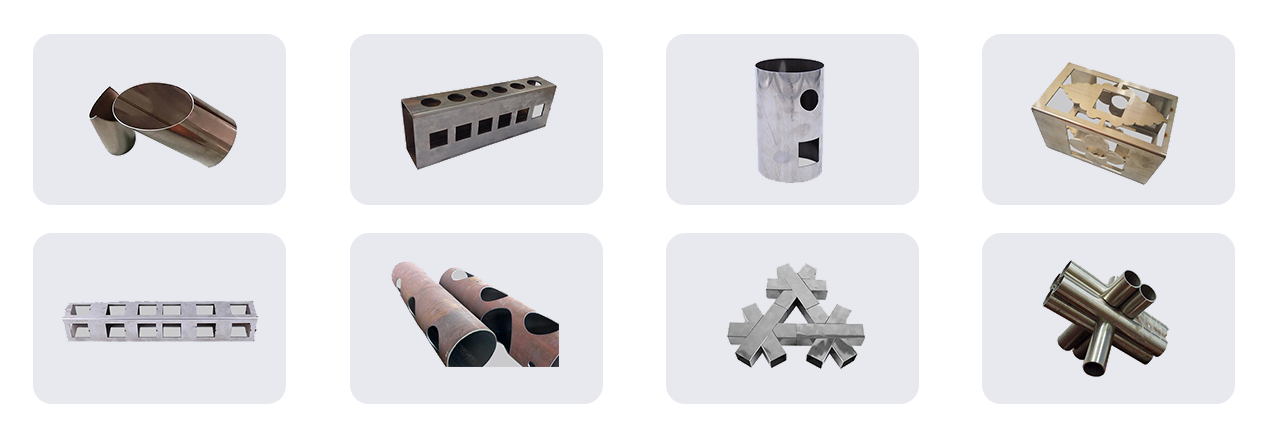

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
