Wide Cutting Range ,Easy Operation：

This machine can be used for various types of pipes: round pipes, square pipes, oval pipes,etc with multi-process cutting. Cutting range for round pipes diameter is Φ10mm-Φ86mm, square pipes diagonal is ≤82mm.

The electronic control components adopt imported accessories,support 24-hour operation.

Industry-specific operating system.Deep optimization, fast response, minimal operation,achieving the perfect combination of speed, function and stability.

The acceleration reaches 1.6G, and efficiency is 5~6 times that of ordinary pipe cutting machines;

Small blind area of tailings, saving materials and reducing post-process：

Normal cutting tail of the equipment is about 40mm, which greatly saves material loss.

Following-up cutting：

Standard equipped with height controller, easy to handle for deformed pipes.

Automatic identification of head and tail material：

The head and tail materials are automatically separated from the finished parts, reducing the manual sorting process.

Stable Machine Structure

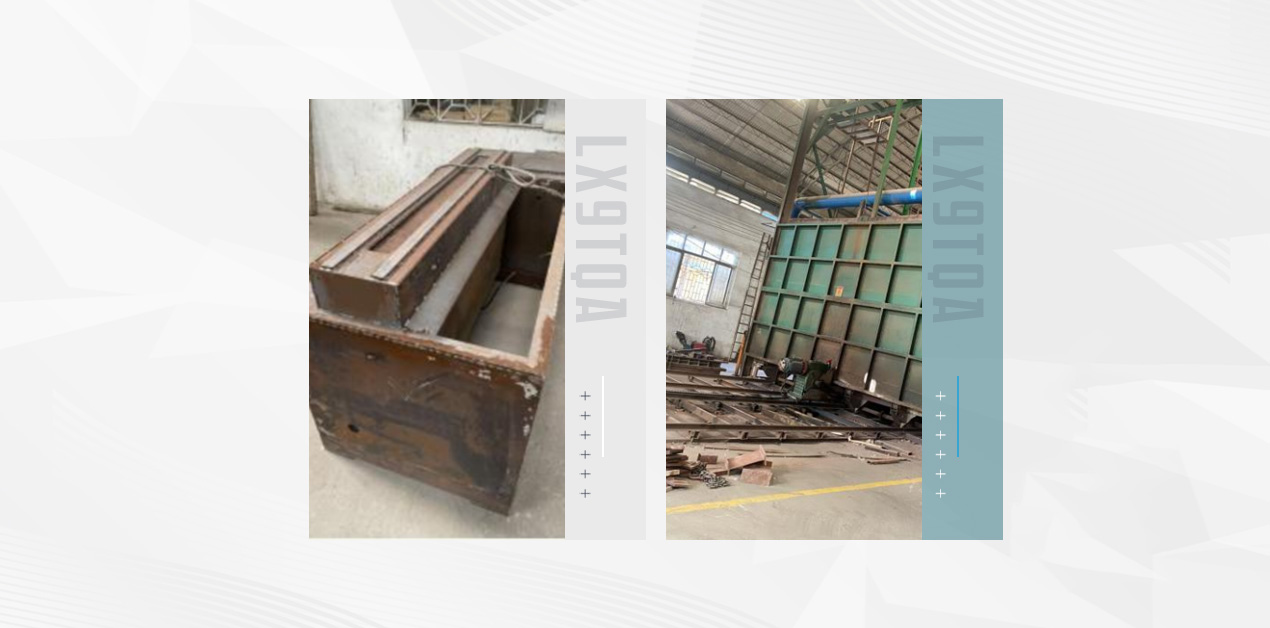

Machine bed adopts strict welding and annealing process to ensure long-term stable operation and cutting accuracy of the equipment. After each welding seam of the bed is completed, an infrared flaw detector is used to detect whether there is a phenomenon of virtual welding or de-soldering, so as to ensure the welding quality. The unique constant temperature type bed stress relief annealing process is adopted. Each time the temperature rises by one degree, the temperature will be kept constant to ensure that the whole bed reaches the same temperature, and then the next stage of heating is carried out.After the multi-stage heating process, the machine bed will be cooled with the furnace, so as to ensure the elimination of residual stress in the weldings of the bed, stabilizing the bed size and shape, and ensure that the bed will not be deformed during the life cycle.

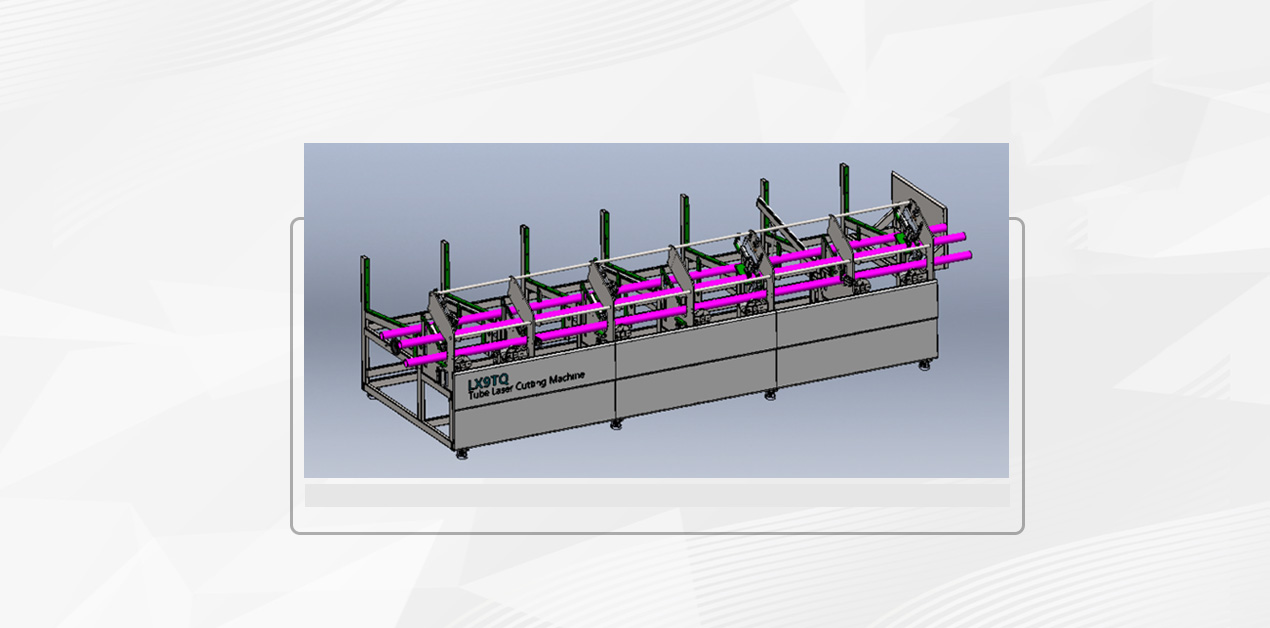

Fully Automatic Loading

The machine can realize fully automatic feeding.It is only necessary to hoist the raw materials into the storage rack in batches: automatic loading → automatic feeding → automatic cutting → automatic blanking of the whole process.

square pipes, round pipes and elliptical pipes all can be fully automatic loading。

Fast loading speed and high loading accuracy.

Equipped with profiling drag rollers to prevent pipe deformation and sagging.

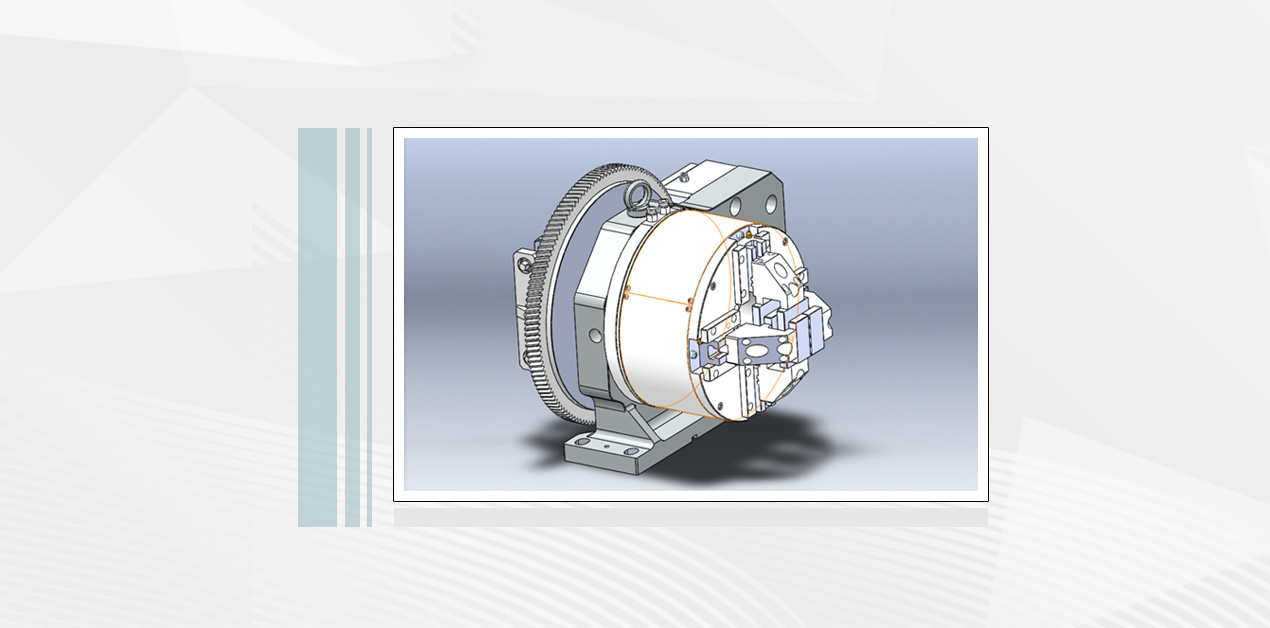

Equipped with a universal high-precision pneumatic chuck, it solves the shortcoming that this type of pipe cutting machine needs to replace the fixture frequently, and can realize the cutting and processing of pipes of different specifications without changing the fixture.

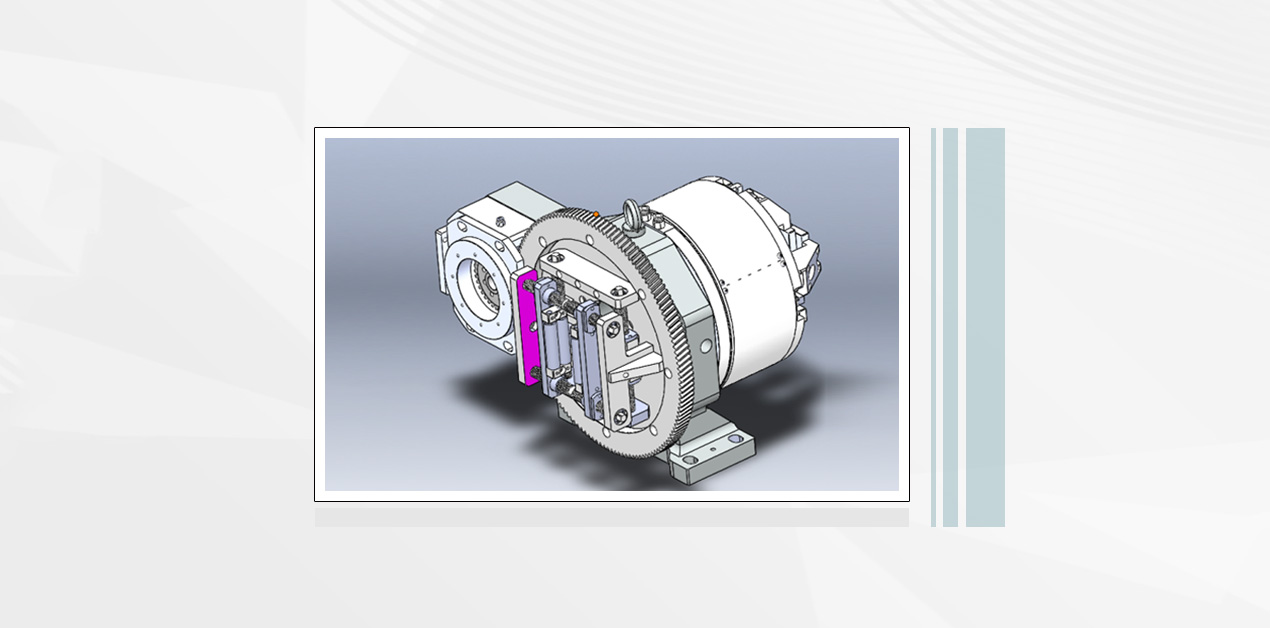

The pneumatic chuck adopts a double-sided clamping mechanism, which increases the support points of the pipe during cutting process and improves the cutting accuracy.

FOB Reference Price Range USD: 10000-50000
Model Number:LX9TQA
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.

Machine Size:(About)1000*2600*1500mm (Only machine main parts)
Machine weight:1000KG(Only machine main parts)
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Model	LX9TQA
Laser Power	1000/1500/2000/3000W
Length of laser wave	1070nm±5nm
Type of Laser	Single mode
photoelectric conversion efficiency	30%
Work Mode	Continuous light
Power range	5-95%
Power Unstabilit	2%
Transmission fiber core	25um-50um
Length of Fiber	10m
Cooling way	Water cooling
Water chiller model	1.OP/1.5P/2.0P
Cooling water temperature	20-25℃
Power	AC 220V±10% AC380±10%，50/60Hz
Temperature of work environment	10~35℃
Humidity of work environment	≤95%

LX9TQA Automatic Feeding Fiber Laser Cutting Metal Tube Pipe Machine for Iron Stainless Steel Carbon Steel Application

Application Materials:

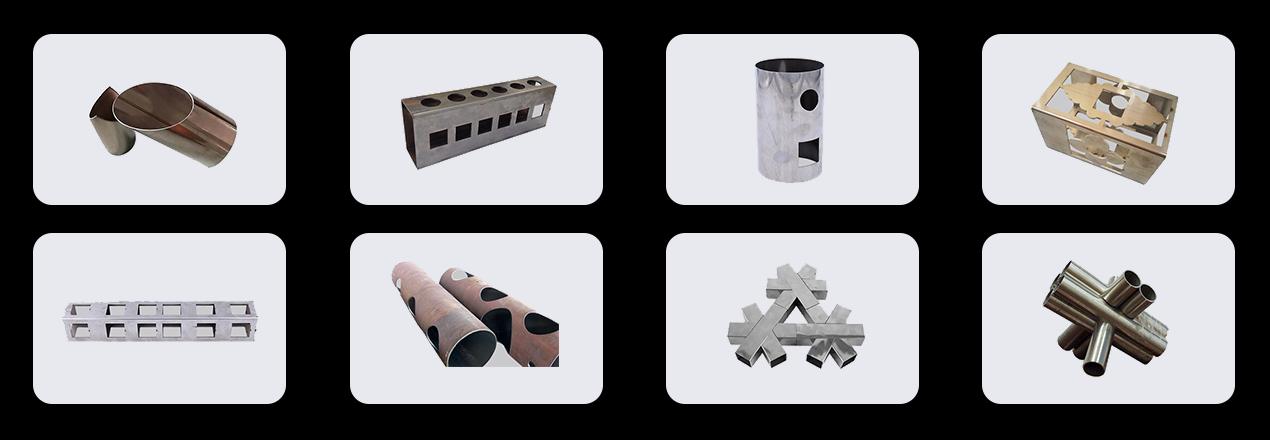

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
