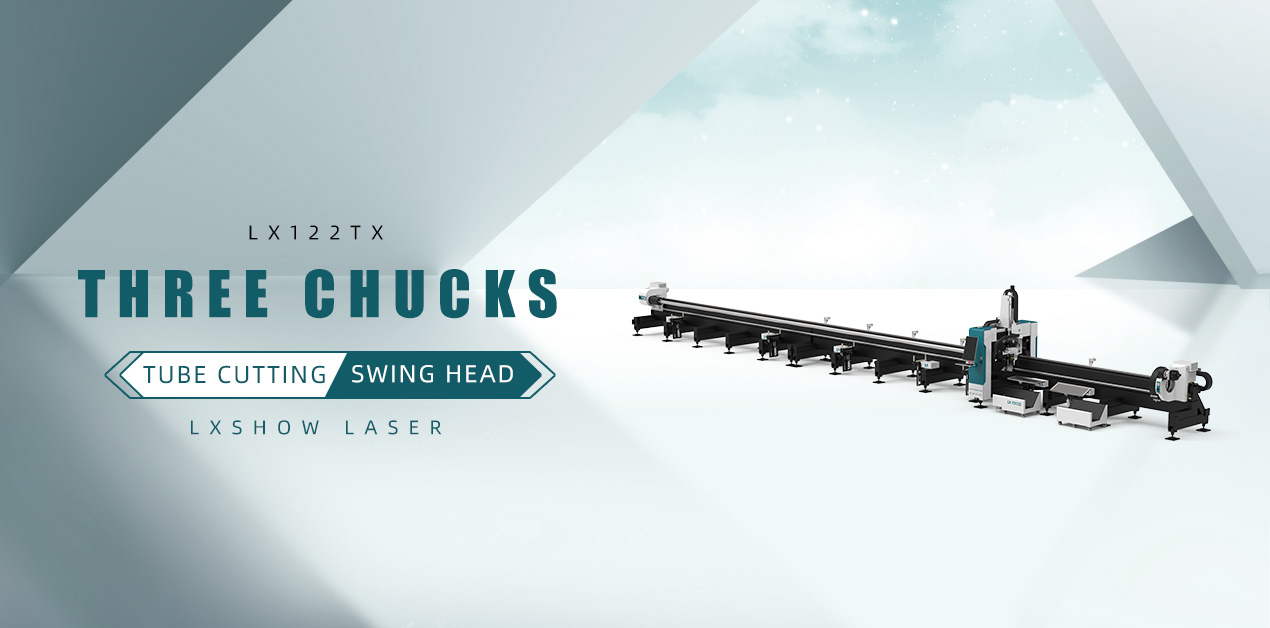

TX122(3)B High Speed Cnc Metal Pipe Laser Cutting Machines

TX122(3)B三卡盘切管机带摆动头-1270-1 TX122(3)B三卡盘切管机带摆动头-1270-2

The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance1
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is opinional)

2



Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non – destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability

4

Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting

5
