Features

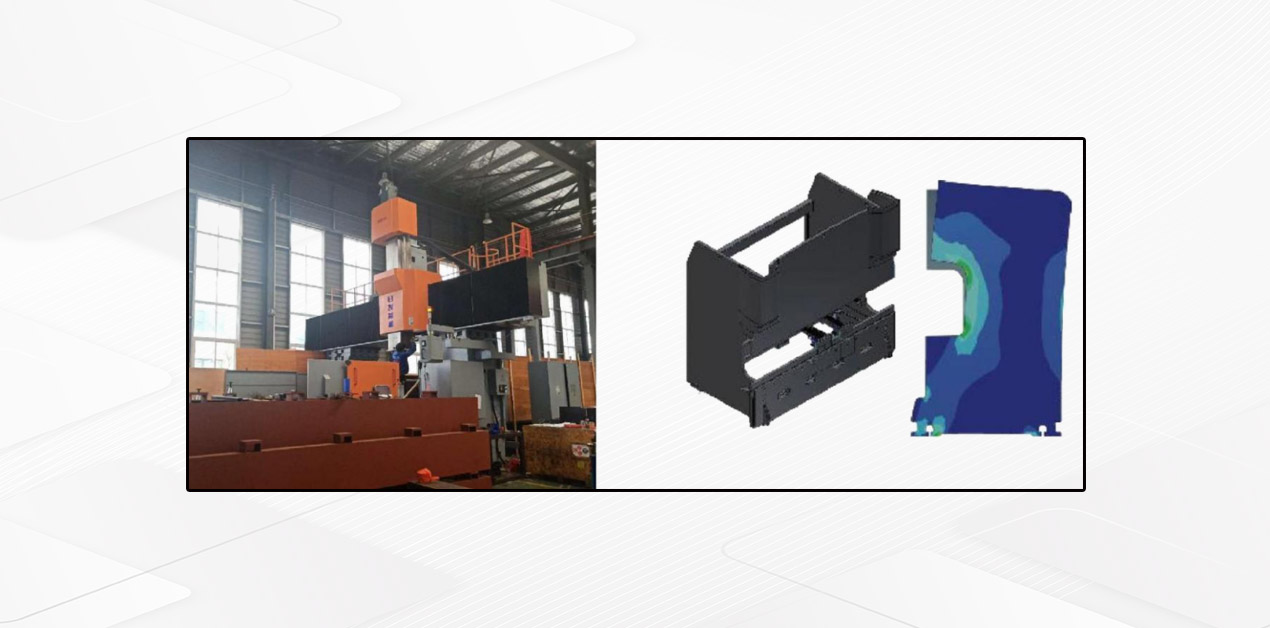

•Complete steel-welded structure, with sufficient strength and rigidity;
•Hydraulic down-stroke structure, reliable and smooth;
•Mechanical stop unit, synchronous torque, and high precision;
•The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;
•Upper tool with tension compensating mechanism, In order to guarantee high precision of bending;
•TP10S NC system;

CNC System

• TP10S Touch screen
• Support angle programming and depth programming switching • Support settings of mold and product library
• Each step can set opening height freely
• The shift point position can be freely controlled
• it can realize Multi-axis expansion of Y1、 Y2、 R
• Support mechanical crowning workingtable control
• support large circular arc automatic generate program
• Support top dead center, bottom dead center, loose foot, delay and other step change options, it improve processing efficiency effectively • Support electromagnet simple bridge
• Support fully automatic pneumatic pallet bridge function • Support automatic bending, realize unmanned bending control, and support up to 25 steps of automatic bending
• Support time control of valve group configuration function, fast down, slow down, return, unloading action and valve action
• it has 40 product libraries, each product library has 25 steps, large circular arc supports 99 steps

Upper Tool Fast Clamp

·Upper tool clamping device is fast clamp

Multi-V Bottom Die Clamping(option)

·Multi-V bottom die with different openings

Backgauge

·Ball screw/liner guide are high precision

Front Support

Aluminium alloy material platform ,attractive appearance,
And decrease scratch of workpicec.

Crowning Compensation for Worktable

· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
·The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

Quick Change Bottomm Die

·Adopt 2-v quick change clamping for bottom die

Lasersafe Safety Guard

·Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module
· Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers；three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.

Mechanical Servo Bending Help

·· When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.
· Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning
·Support platform can be brush or stainless steel tube ,according to workpiece size,two supports linkage movement or seperate movement can be chosed.

Metal Bending Machine Parameter

Parameters
Model	Weight	Oil Cylinder Diameter	Cylinder Stroke	Wallboard	Slider	Workbench Vertical Plate
WG67K-30T1600	1.6 tons	95	80	18	20	20
WG67K-40T2200	2.1 tons	110	100	25	30	25
WG67K-40T2500	2.3 tons	110	100	25	30	25
WG67K-63T2500	3.6 tons	140	120	30	35	35
WG67K-63T3200	4 tons	140	120	30	35	40
WG67K-80T2500	4 tons	160	120	35	40	40
WG67K-80T3200	5 tons	160	120	35	40	40
WG67K-80T4000	6 tons	160	120	35	40	45
WG67K-100T2500	5 tons	180	140	40	50	50
WG67K-100T3200	6 tons	180	140	40	50	50
WG67K-100T4000	7.8 tons	180	140	40	50	60
WG67K-125T3200	7 tons	190	140	45	50	50
WG67K-125T4000	8 tons	190	140	45	50	60
WG67K-160T3200	8 tons	210	190	50	60	60
WG67K-160T4000	9 tons	210	190	50	60	60
WG67K-200T3200	11 tons	240	190	60	70	70
WC67E-200T4000	13 tons	240	190	60	70	70
WG67K-200T5000	15 tons	240	190	60	70	70
WG67K-200T6000	17 tons	240	190	70	80	80
WG67K-250T4000	14 tons	280	250	70	70	70
WG67K-250T5000	16 tons	280	250	70	70	70
WG67K-250T6000	19 tons	280	250	70	70	80
WG67K-300T4000	15 tons	300	250	70	80	90
WG67K-300T5000	17.5 tons	300	250	80	90	90
WG67K-300T6000	25 tons	300	250	80	90	90
WG67K-400T4000	21 tons	350	250	80	90	90
WG67K-400T6000	31 tons	350	250	90	100	100
WG67K-500T4000	26 tons	380	300	100	110	110
WG67K-500T6000	40 tons	380	300	100	120	120

Hydraulic system
· Adopts advanced integrated hydraulic system reduces the installation of pipelines and ensures a high degree of reliability and safety in the operation of the machine.
· The speed of the slider movement can be realized. Rapid descent, slow bending, fast return back action, and fast down, slow down speed can be adjusted appropriately.

Electric control system
· Eletrical component and material meet international standards,safe,reliable and long life.
· The machine adopts 50HZ, 380V three-phase four-wire power supply.The motor of machine adopts three-phase 380V and the line lamp adopts single phase-220V.The control transformer adopts two-phase 380V.The output of the control transformer is used by the control loop, among which 24V is used for back gauge control and for electromagnetic reversing valves. 6V supply indicator, 24V supply other control components.
· The electrical box of the machine is located on the right side of the machine and is equipped with a door opening and power-off device.The operate component of machine are all concentrated on the electrical box except the foot switch, and the function of each operating stacked element is marked by the image symbol above it.It can automatically cut off the power supply when opening the electric box door, and if it needs to be repaired live, it can be manually reset to pull out the micro switch lever.

Front and back gauge
· Front bracket: It is Placed on the side of the worktable and secured by screws. It can be used as a support when bending wide and long sheets.
· Back gauge: It adopts back gauge mechanism with ball screw and linear guide is driven by servo motor and a synchronous wheel timing belt. The high-precision positioning stop finger can be easily moved left and right on the double linear guide rail beam, and the workpiece is bent "as you like".
